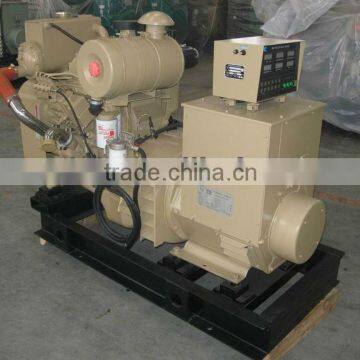

60Hz Taizhou sudong 50kva small diesel generator marine type

60Hz Taizhou sudong 50kva small diesel generator marine type with CCS BV certificate

This genset is powered by Weichai Deutz engine, coupled with Marathon alternator;

Stamford,  Siemens and Sanbo alternators are optional;

With Robust foot mounting, Reliable performance and Versatile configurations,

It’s your initial choice for inland power supply.

Any problem, please be free to contact me by skype: justinguo2006, Taizhou, China for instant communication!

Weifang Weichai Deutz Engine Co., Ltd

Genset Feature

Our genset consists of Engine, Alternator, Foot-mounting, Control panel, Radiator, Air filter, Exhaust silencer, Elbow, Expansion joint, Battery, Shock absorber and Operation manual.

Model Number: CCFJ40WDll

Prime Power: 40KW/50KVA

Standby Power: 44KW/55KVA

Rated Voltage: 230V/400V/415V/440V

Rated Current: 72A

Output Type: AC 3 Phase

Speed: 1800rpm

Frequency: 60Hz

Dimension: 1750*740*1100 (for reference)

Weight: 900kgs  (for reference)

Accessories optional: Fuel tank, Canopy, Soundproof enclosure

Diesel Engine Feature

Brand: Deutz

Manufacturer: Weifang Weichai Deutz Engine Co., Ltd.

Model: TD226B-3CD

Rated Power: 45KW

Cyl. and arrangement: 3 inline

Bore/Stroke: 105/120mm

Aspiration: turbocharger

Configuration: water cooled closed, 4-strike, direct injection

Governor: Electronic or Manual

Starting Method: DC24V electric motor or air motor

Fuel Consumption: ≤208 g/kw.h

Accessories optional: Governor of manual or servo, Battery charger, Engine coolant and oil heater, Fuel-water separator

Alternator Feature

Brand: Marathon

Manufacturer: Shanghai Marathon-Gexin Electric Co., Ltd.

Model: MP-H-40-4

Electric capacity: 40KW/50KVA

Configuration: Brushless, self-excited, AVR, 4 poles

Voltage: 230V/400V/415V/440V

Frequency: 60Hz

Power Factor: 0.8(lagging)

Connecting Type: 3 phase, 3 wires

Insulation: Class H

Protection: IP23

Accessories optional: PMG, Alternator space heater, Anti-condensation heater

Control panel Feature

Brand: Smartgen, Harsen

1. Microprocessor control module, with high stability and credibility

2. Monitoring and measuring operational parameters of the generator set

3. Indicating operation status, fault conditions, all parameters and alarms

4. Multiple protections, multiple parameters display like pressure, temp. etc

5. Manual and automatic work mode selectable

6. Language optional of Chinese, English, Russian etc.

7. LED display, touch control

8. Real time clock display and log entries

Function optional: AMF, ATS, Paralleling, Remote control
