CCS certified 50kva marine emergency DG with Deutz engine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Sudong
Model Number	CCFJ40WD	Output Type	AC Three Phase
Speed	1800rpm	Frequency	60Hz
Rated Power	40KW/50KVA	Rated Voltage	230V/400V/415V/440V
Rated Current	72A

Product Description

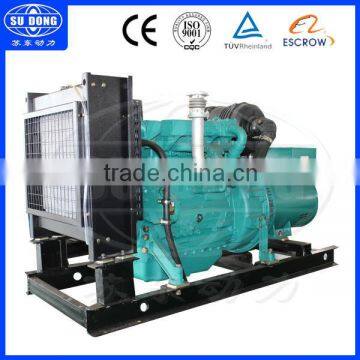

CCS certified 50kva marine emergency DG with Deutz engine 226b

This genset is powered by Deutz engine, coupled with Marathon alternator;

Stamford, Siemens and Sanbo alternators are optional;

With Robust foot mounting, Reliable performance and Versatile configurations,

It’s great choice for marine mains, emergency or harbour generator.

Any problem, please be free to contact me by skype: justinguo2006, Taizhou, China for instant communication!

Genset Feature

Our genset consists of Engine, Alternator, Foot-mounting, Control panel, Air filter, Exhaust silencer, Elbow, Expansion joint, Battery, Shock absorber and Operation manual.

						Model Number:	CCFJ40WD
						Prime Power:	40KW/50KVA
						Standby Power:	44KW/55KVA
						Rated Voltage:	230V/400V/415V/440V
						Rated Current:	72A
						Output Type:	AC 3 Phase
						Speed:	1800rpm
						Frequency:	60Hz
						Dimension (for reference):	N/A
						Weight (for reference):	N/A
						Accessory optional:	Fuel tank, Cannopy, Soundproof enclosure, Trailer

Diesel engine Feature

Brand:	Deutz
Manufacturer:	Weifang Weichai Deutz Co., Ltd.
Model:	D226B-3CD1
Rated Power:	50KW
Cyl. and arrangement:	3 in line
Bore/Stroke:	105/120mm
Aspiration:	Turbocharger
Configuration:	water cooled closed, 4-strike, direct injection
Governor:	Electronic
Starting Method:	DC24V electric motor
Fuel Consumption:	≤218 g/kw.h
Accessory optional:	Governor: manual or servo Battery charger Engine coolant and oil heater Fuel-water separater

Alternator Feature

							Brand:	Marathon
							Manufacturer:	Shanghai Marathon-Gexin Electric Co., LTD
							Model:	MP-H-40-4
							Electric capacity:	40KW/50KVA
							Voltage:	230V/400V/415V/440V
							Frequency:	60Hz
							Power Factor:	0.8 (lagging)
							Configuration:	Brushless, self-excited, AVR, 100% copper winding
							Connecting Type:	3 phase, 3 wires
							Insulation:	Class H
							Protection:	IP23
							Accessory optional:	Alternator space heater Anti-condensation heater

Control panel

Operation function	Manual start/stop
	Reset
	Remote plug
Display function	Engine speed
	Oil pressure
	Water temperature
	Oil temperature
	Operation LED indicator
	Warning LED indicator
Warning function	Low oil pressure
	High water temperature
	over speed
Protection function	Emergent shutdown button Auto shutdown for protection

Accessory optional:	Control box with better indication and protection Auto start, paralleling function Remote control function
