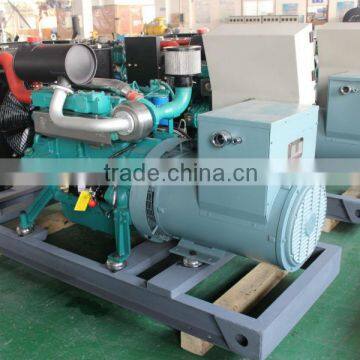

CCS certified 50kW marine emergency generator powered by Deutz engine

GENSET

SUDONG

Type of Genset

Marine Emergency generator

Classification

CCS, BV, RS, RINA etc.

Prime Power (kWe)

40

Standby Power (kWe)

44

Rated voltage(V)

400/230

Rated frequency & speed

50Hz & 1500rpm

Power factor

0.8

Ambient temperature(°C)

40

Altitude(m)

1000

Connection type

3 phase 3 wires,delta connection

Dimension(for reference)

2050*940*1340mm

Weight(for reference)

1150KGS

Optional: Fuel tank, Canopy

ENGINE

DEUTZ

Model

WP4CD60-15

Manufacturer

Weifang Weichai Deutz Diesel Engine Co., Ltd.

Rated Power(kW)

60

Cyl. & arrangement

4 in line

Speed governor

Electronic or Mechanical

Startor

DC 24V motor &0 spring motor

Cooling method

Radiator

Aspiration

Turbocharged

Bore×Stroke(mm)

105×120

Fuel consumption (g/kw.h)

≤205

Lube consumption (g/kw.h)

≤ 0.8

Optional: Governor servo, Battery charger, Battery pack,

Muffler, Jacket heater

ALTERNATOR

Optional

Manufacturer & Make

Marathon, Stamford, KFS

Connecting Type

3 Phase 3 Wires

Number of Bearing

Single or double

Coupling

Direct or flexible

Power Factor

0.8

Protection Grade

IP23

Number of pole

4

Winding/ Pitch

100% Copper, 2/3 Pitch

Exciter Type

Brushless, Self-Excited

Insulation Class

H

Optional function: PMG, Space heater, Anti-condensation heater

CONTROL SYSTEM

Engine monitor

Digital display:        Temperature of oil & water

Lube oil pressure

Rotating speed etc.

Multiple alarm:        Overspeed

High temperature of oil & water

Low pressure of lube oil

Fuel leakage etc.

Shutdown protection:  Overspeed,

Very low pressure of lube oil,

Very high temperature of oil & water etc.

Indicator & Button: Start, stop, work condition, emergency stop etc.

Optional function: Self-start controller, Remote control
