Home > Products > TIG > SUPER-160P CUT/MMA/TIG AC/DC INVERTER WELDING MACHINE

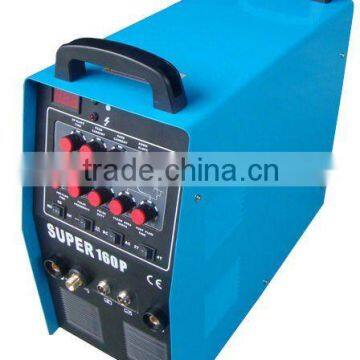

SUPER-160P CUT/MMA/TIG AC/DC INVERTER WELDING MACHINE

FOB Price

US$ 1 - 1,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	RONGYI
Model Number	SUPER-160P	Input Voltage	220V
Rated Current	160A	Dimensions	520155375mm
Usage	CUT/MMA/TIG

Product Description

Specifications

new design, with UP-slope function;
stable arc;
safe and durable;
CUT/MMA/TIG AC WELDING MACHINE SUPER160P

Feature of CUT/MMA/TIG AC WELDING MACHINE SUPER160P:

1.Reactive power correction and Mosfet soft switch technology,100Khzhigh frequency.

2.Compact structure,stable welding current,steady and intensive arc,reliable and surable, easy for maintenance,Excellen control performance,multiple functions of TIG,MMA and CUT.

4. Thermostatic protection,over-voltage protection, over-current protection, under-voltage protection pedal control interface for safe operation.

5,Model with "P" means function of pulse with 9 regulator knobs,and pulse welding function ensure perfect welding performance,especially for thin plate welding,up-welding and vertical welding.

Feature of CUT/MMA/TIG AC WELDING MACHINE SUPER160P:

Model Spec.	SUPER-160	SUPER-200	SUPER-160P	SUPER-200P
Power supply voltage	AC 220±10% V / 50~60 Hz
Power supply capacity	5.7 kVA	7.5 kVA	5.7 kVA	7.5 kVA
Rated input current	15 A	20.7A	15 A	20.7 A
Output current range(TIG)	5-160 A	5-200 A	5-160 A	5-200 A
Output current range (MMA)	10-150 A	10-170 A	10-150 A	10-170 A
Output current range (CUT)	10-40 A	10-50 A	10-40 A	10-50 A
No-load voltage (TIG)	42 V	56 V	42 V	56 V
No-load voltage (MMA)	42 V	56 V	42 V	56 V
No-load voltage (CUT)	168 V	220 V	168 V	220 V
Pre-flow time	0-2 S	1-3 S	0-2 S	1-3 S
Post-flow time	2-10 S	2-10 S	2-10 S	2-10 S
Weld thickness range(TIG)	1-8 mm	1-12 mm	1-8 mm	1-12 mm
Weld thickness(MMA)	1-5 mm	1-9 mm	1-5 mm	1-9 mm
Cut thickness(CUT)	1-8 mm	1-10 mm	1-8 mm	1-10 mm
Attenuation time	0-5 S	0-5 S	0-5 S	0-5 S
Efficiency	85%	85%	85%	85%
Air pressure	0.4 MPa	0.4 MPa	0.4 MPa	0.4 MPa
Insulation grade	B	B	B	B
Cosφ (η)	0.95	0.95	0.95	0.95
Attenuation time	0-5 S	0-5 S	0-5 S	0-5 S
Protection	IP 21S	IP 21 S	IP 21 S	IP 21 S
Net Weight	22.5 kg	23.5 kg	23.5 kg	24.2 kg
Dimensions (mm)	520330375	520330375	520330375	520330375

* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY RONGYI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.

The data in the above table is only for reference. Please subject to the nameplate
on the device.
