Home > Products > Laser cutting machine > Fiber Laser Cutting Machine 500w 1000w 2000w
Fiber Laser Cutting Machine 500w 1000w 2000w
- Dalian China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Laser Type | Fiber Laser | |
| Applicable Material | Metal | Cutting Thickness | depends on cutting material | |
| Cutting Speed | 0-17m/min | CNC or Not | Yes | |
| Cooling Mode | Water Cooling | Control Software | Leisun | |
| Graphic Format Supported | AI, BMP, DXF | Place of Origin | Liaoning, China | |
| Brand Name | HONEYBEE | Model Number | HBLA-F-1500X3000 | |
| Certification | CCC, CE, ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

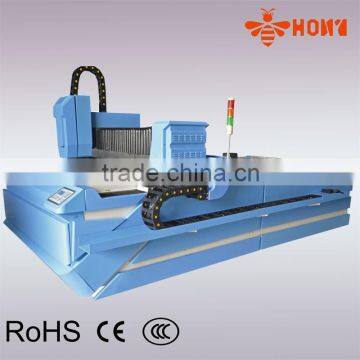

Machine picture:
Samples of cutting :
Machine Applicable industry:
Aerospace technology, rocket, plane, robot, elevator, steamship and
automobile manufacturing and metal parts processing industry for metal
plate, advertisement, kitchen ware, bit tool, hardware factory etc.
Machine Parameter
1 | Machine Name | HBLA-F-1325/1530 Fiber laser cutting machine |
2 | Laser machine cutting area | 1300x2500mm/ 1500x3000mm (Optional) |
3 | Cutting thickness | 0.2-3mm stainless steel/0.2-4mm Steel/ 10MM/20MM |
4 | Laser power | 200w/400w/500w/1000W/2000W |
5 | Laser wave length | 1080nm |
6 | Transmission system | Imported ballscrew/ Gear rack (optional) |
7 | X.Y axis location accuracy | ±0.01mm |
8 | X.Y axis repeat location accuracy | ±0.01mm |
9 | X.Y axis max moving speed | 30m/min |
10 | Max cutting speed | 1--16m/min |
11 | Min cutting line with | 0.02mm |
12 | Machine area size | 4.0x2.5x1.5m |
Machine details :
This product can be the best choice for bulk metal materials cutting job:
1.gantry structure, high -strength cast aluminum alloy X-Axis beam can ensure the stability in the process of fast cutting.
2. high power Japanese Panasonic servo motor together with
"HIWIN" ball screw as the transmission system can ensure high
precision and speed.
3. GSI fiber laser generator from UK with flexible optical path, which
have the advantages of high precision, high efficiency and low running
cost.
4.with original laser -mec laser cutting head from USA, have a high
sensitive sensor-based system.
5 automatic timing oil system save time and improve efficiency.
6. the perfect automatic nesting system can save time, save the materials,
the sheet utilization ratio up to 95%.
