Dalian Huarui Heavy Industry CNC Equipment Co., Ltd.: Dalian, Liaoning, China; Main products: CNC Cutting Machine and Accessories, laser cutting machine, cnc cutting machine, plasma cutting machine

Home > Products > CNC Portable plasma/flame cutting > portable cnc cutting machine with width cutting size, stable cutting quality

portable cnc cutting machine with width cutting size, stable cutting quality

FOB Price

US$ 1,500 - 5,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Liaoning, China
Brand Name	honeybee	Model Number	HB2015LCD2500*4000
Voltage	110V/220V/380V/440V/600V	Rated Power	180w
Dimension(LWH)	250040001.2	Weight	110KG
Certification	CE,ISO9001, CE and ISO9001,2001	Warranty	12 month
After-sales Service Provided	Overseas third-party support available

portable cnc cutting machine with width cutting size, stable cutting quality

Product Description

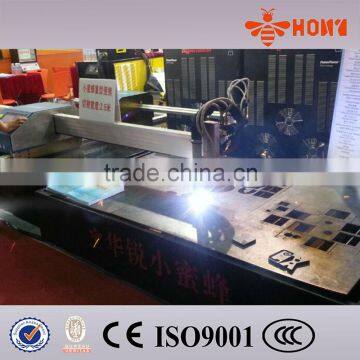

Honeybee Heavy Duty Portable CNC Cutting Machine(HB2015LCD)

After five years, Honeybee launches a new product again--Honeybee Heavy Duty Portable CNC Cutting Machine!

Except inheriting all the advantages of Honeybee first and second generations, HB2015LCD enjoys more functions and wider application range.

Main Advantages:

1.Higher Speed, More Smooth Running

Travel speed can arrive 6000mm/min and very stable.

2. Bigger Cutting Scope , Better Cutting Quality

Effective cutting range 2500mm*4000mm, much bigger than the competitors in same industry, even can compete with gantry type cutting machine!

3. More Functions

Standard configuration Oxy-fuel solenoid valve, Electric torch lifting, Arc voltage (or Capacitance)auto torch height control (THC).

4. More Powerful Drive Ability

Use the structure mixing servo motor drive and reducer

Type	HB2015LCD-2500×4000
Input voltage	110V/220V/380V/440V/600V
Power supply frequency	50/60Hz
Rate power	300W
Transverse effective cutting	2500mm
Longitudinal effective cutting	4000mm
Cutting speed	0-6000mm/min
Cutting thickness (flame)	0-160mm
Cutting thickness (plasma)	Depends on plasma power capacity
Machine weight	110KG
Flame cutting gas	Propane,acetylene,methane
Pressure of the fuel gas	≤0.1MPa
Pressure of oxygen	≤1MPa
Packing size of the rail and beam	4100×450×200mm
Package size of host machine	660×550×435mm
Electric torch lifting	standard configuration
Torch height control	standard configuration
Solenoid valve control	standard configuration
Driving mode	Mixing servo motor(with encoder feedback)
