Cnc Plasma Bevel Cutting Machine High Effective Dual ESAB Plasma Souce
- Dalian China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Heavy Duty Type Industrial Cnc Plasma VBA Cutting Machine From Honeybee
-
Gantry Type Cnc High Definition Plasma Cutting Heavy Duty Mechanical Workshop Equipment
-
Honeybee Brand CNC Bevel Cutting Machine/6.0m X 14.0m Cutting Area
-
High Effective Heavy Duty Warship Plasma CNC Bevel Cutting Machine
-
Honeybee Economic CNC Plasma Cutting Machine Hypertherm
-
Cnc Cutting Drilling Machine
Product Details
| Place of Origin | Liaoning, China | Brand Name | Honeybee | |
| Model Number | HBESAB 6000*14000*2A | After-sales Service Provided | Overseas third-party support available |
Product Description
According to customer demand computer programming cutting

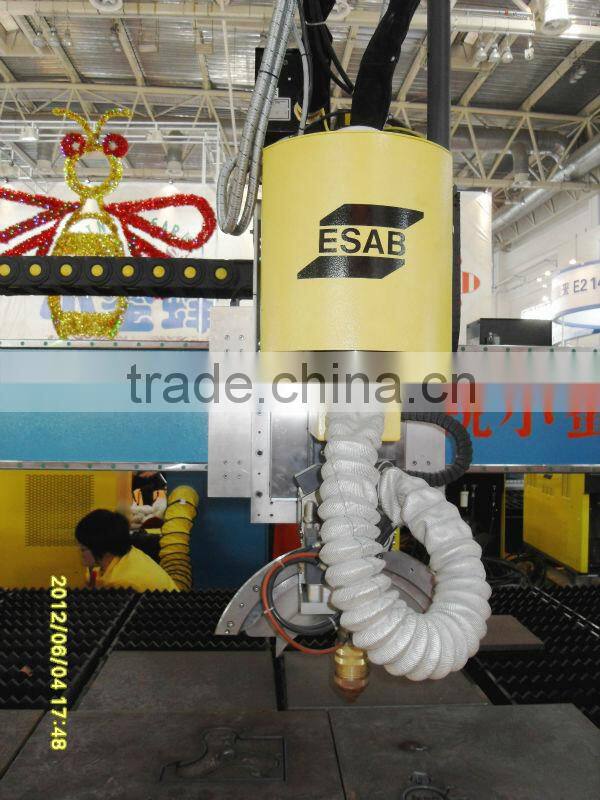

Honeybee Gantry type Bevel CNC Cutting Machine is a kind of automatic cutting equipment which is combined ESAB system,
precise mechanical drive and air cutting technology. It is widely applied to manufacture and cutting steel field, such as, the ship
building industry, steel construction, construction machinery, mining machinery, pressure vessel and vehicle, petrochemical, etc.
The machine includes the cross beam, trolley, longitudinal rails, CNC system, moving system and electric system, etc. You can
choose the different CNC system, Honeybee CNC system, Vup CNC system, USA Hypertherm CNC system. Support USA
Hypertherm, Thermadyne and Kjellberg plasma power sources. For the driving mode, if the track span is less than 4m, the Gantry
CNC Cutting Machine is single drive, if over 4m, it is double drives. In order to ensure the stability of machine under rapidly
runnning, we use the heavy trolley for the Gantry Cutting Machine which equiped Hyperformance plasma power sources or its
track span over 6 meters. With automatic correction function to keep the long-term working precision.
Standard Model List of Gantry CNC Cutting Machine
New!!! Bevel plasma cutting machine
Track Span(m) |
| 4 |
| 6 |
| 10 | |
Rail length(m) |
| 12 |
|
| 14 |
| 16 |
Every the length of rail is 2m, Can be lengthened according to Users demand. | |||||||
Torch No. | 1-2 plasma torches. Double plasma torches can be customized. Double drive : Double Mitsubishi Sero motors (3600W Each) | ||||||
Max cutting Area |
| 3.1*10 |
| 5.1*12 |
| 9.2*14 | |
Cutting thickness | Max 35mm | ||||||
Driving Mode | Single | Dual driving | |||||
CNC system | ESAB | ||||||
Program software | Australia FastCAM professional edition | ||||||
Speed Range | 0~21000mm/min | ||||||
Cutting gas | plasma cutting gas depends on plasma model | ||||||
Option | Plasma: Auto THC | ||||||

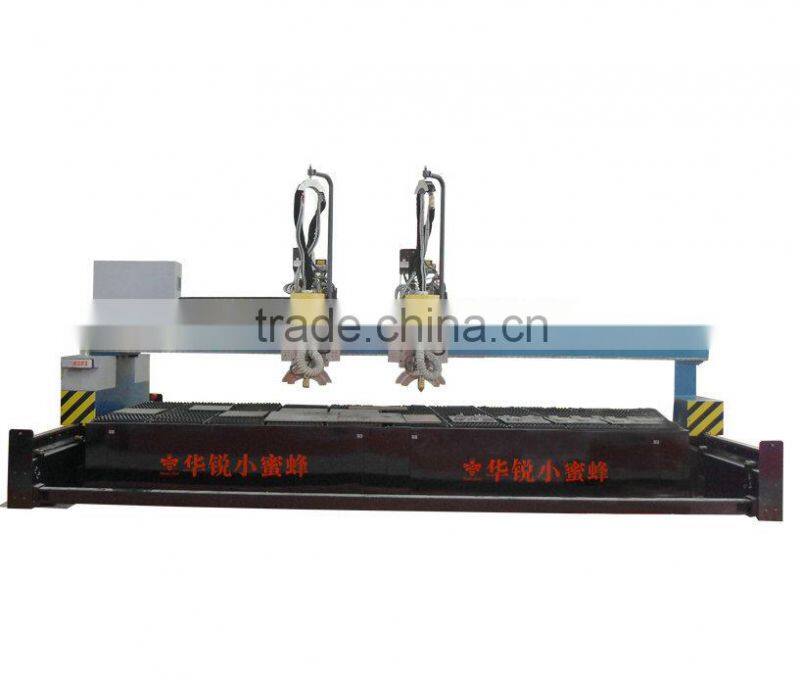

Machines:

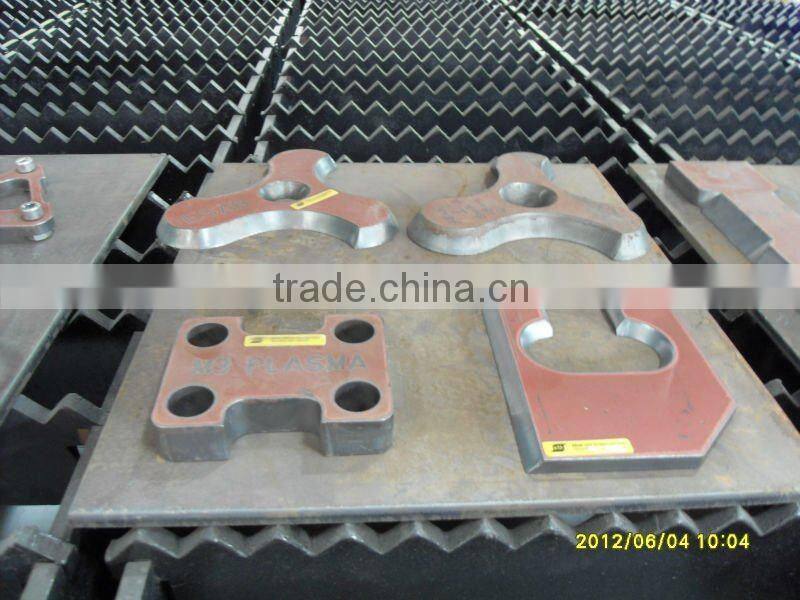

Cutting samples and applications:

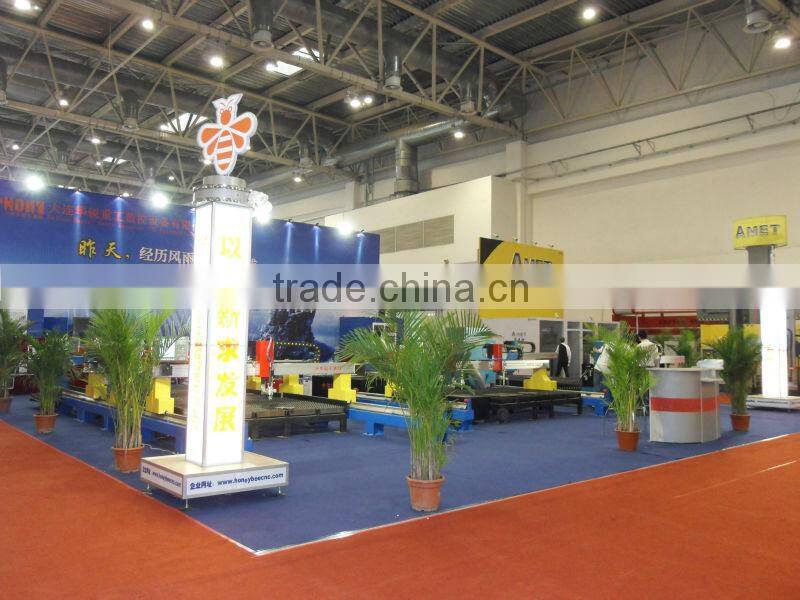

Exhibitions:
