Automatic Cheap Type Plasma Cutting Machine for Plasma

Machine Features:

For thin plate cutting 0.3mm to 50mm mild steel plate cutting.

Very high cutting speed up to 36m/min to ensure the thin plate not be burnt.

Small kerf,precise cutting ,not cutting residue avoiding complementary reworking

Compatible with most common cutting software like Fastcam,Arc cut, ArtCAM.

Compact size and no need installation.

Benifit :

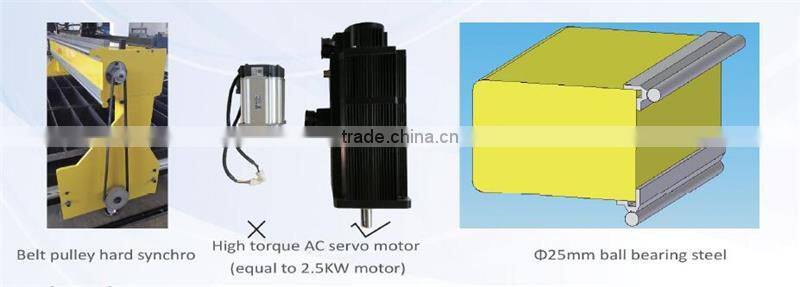

The machine mainly consists of work table, beam, trolley, guide rail and CNC system. Beam and trolley adopts steel structure. Longitudinal direction

adopts belt pulley hard synchro structure, transversal and longitudinal guide rails adopt Φ25mm ball bearing steel. CNC system adopts

10" Honeybee CNC system, support all kinds of plasma sources.

1. Longitudinal driving adopts beltpulley hard synchrostructure. A sychro shaft cross the beam,which realized electrical part and mechanical part synchronized movement.

2.Adopts high torque (15NM) AC servo motor,equal to 4sets of 750W motors. Speed adjusting range 0--36 m/min.(common machine speedjust max12m/min.

High inertiamotor driving,machine runningmore stable, better cutting quality!

3.Adopts synchro belt to buff and absorb shock,getgood cutting quality.

Automatic cheap type plasma cutting machine for plasma

Machine parameter

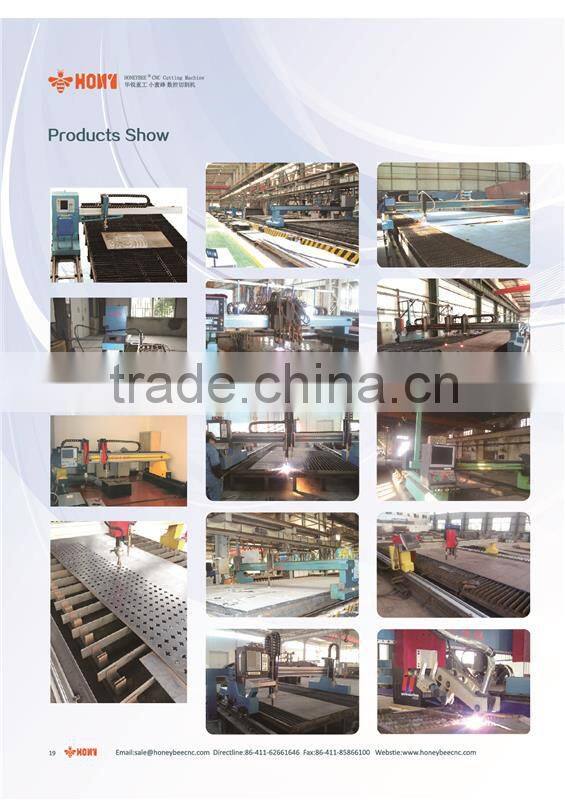

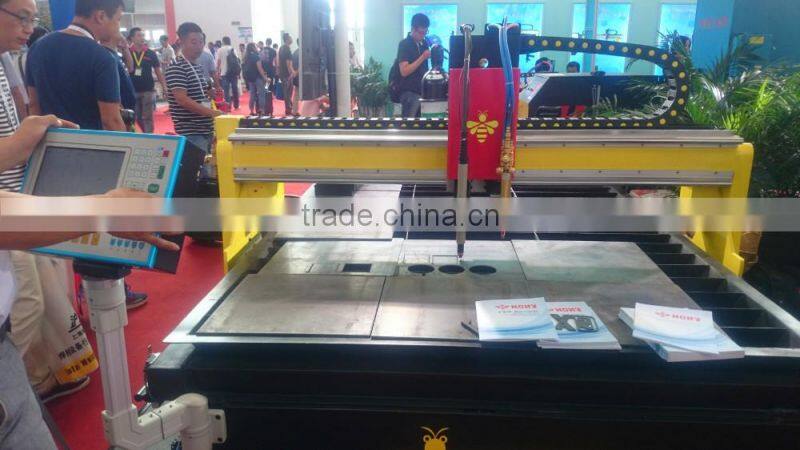

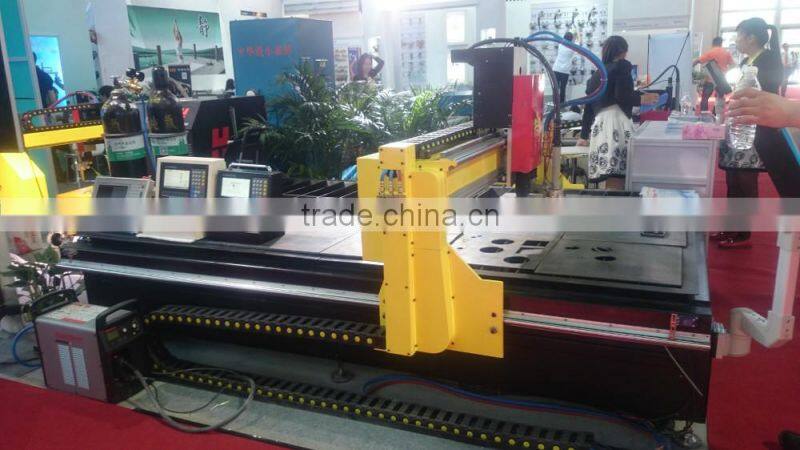

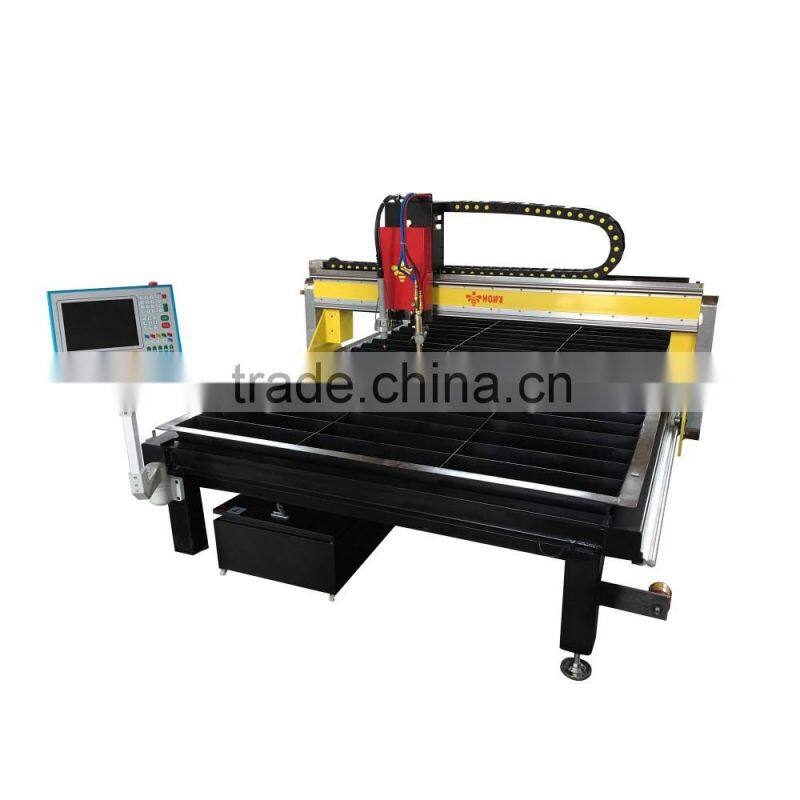

Machine photos

Details

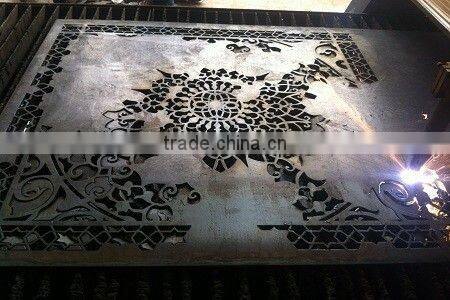

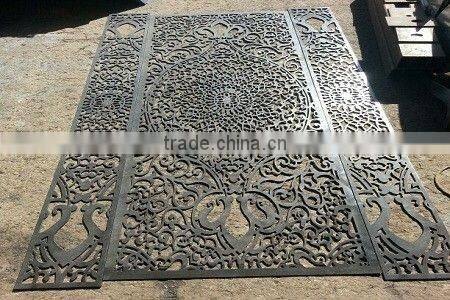

Cutting samples:

Applications demo:

CNC plasma cutting machine  applications:
