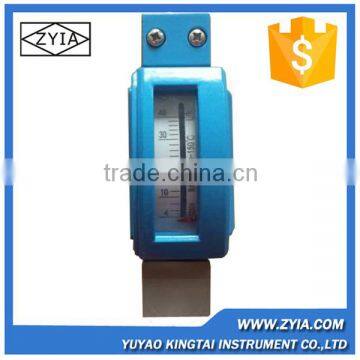

LZZW SS304 or SS316 Portable Stainless Steel Tube Flowmeter

LZZW  SS304 or SS316 portable  stainless steel tube flowmeter

1 Description

The flowmeter operates on the float measuring principle. The measuring section consists of a
metal cone in which a float can move freely up and down. The medium flows through the flowmeter
from bottom to top.
The variable area flowmeters are suitable for measuring gases, vapors and liquids with
specialty of solid, steady and reliable. The flowmeters are available as inlet or outlet pressure
regulator. It also select install 1 or 2 limit switches.

2 Description Code
The description code consists of the following elements*:
LZZW —
1. F10   without valve and vertical connection
    F12    with valve and horizontal connection
2. RR1   Material 304
    RL     Material 316L
  3.K1    One upper limit switch
    K2     One lower limit switch
    K12     Two limit switches
* Positions which are not needed are omitted (no blank positions).
3 Technical data
  3.1 Measuring ranges: Water(20°C)0.3~100 L/h
                                            Air(20°C 101325Pa)5~3400 L/h
  3.2   Measuring span: 10,1
  3.3   Accuracy: 4.0
  3.4   Maximum Pressure: 2.5 MPa
  3.5   Medium Temperature: —80~+150 °C
  3.6   Ambient Temperature: —25~+65 °C
  3.7   Connection Type: 1/4″NPTF
  3.8  Limit Switch: 1 or 2
  3.9   Protection category: IP67
