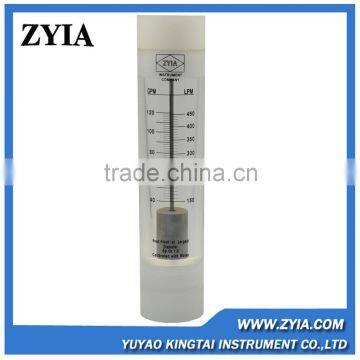

DN50 PP fitting tube type pipe in line flow meter
- SHANGHAI/NINGBO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Supply ZYIA logo 110LPM inline tube float flowmeter instrument
Quality Choice
-
LZM-40G zyia logo Inline tube portable water flowmeter
-
Mechanical type flow meter for water or air
Quality Choice
-
LZM-G series tube type flow meter(flowmeter)Air flow meter Liquid flow meter
-
LZM-G Tube float water flow meter series for RO system with glass/plastics
-
Zyia plastic rotameter flow meter, portable pipeline flowmeter.gas flow rotameter
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ZYIA | |
| Model Number | LZM-50G |
Product Description
DN50 PP fitting tube type pipe in line flow meter
1.Beautiful look
2.Low weight
3.Long life span
4.water/liquid flowmeter
Technical Parameters of LZM-G Series Tube Type Flow Meter
Model | Measure Range | Screw thread | Accuracy | ||
GPM (Liquid) | LPM (Liquid) | Nm3/h (Gas) | |||
LZM-10G |
| 5-45LPH |
| G1/2(M) | ±4%
|
5-60LPH | |||||
10-100LPH | |||||
16-160LPH | |||||
LZM-15G | 0.02-0.2 | 4-40LPH | 0.8-8 1-10 1.6-16 2.5-25 4-40 | G1/2(F)
| |
0.1-1 | 0.5-4 | ||||
0.2-2 | 1-7 | ||||
0.5-5 | 1.8-18 | ||||
1.5-9 | 400-2000LPH | ||||
LZM-20G | 1-10 | 4-36 | 6-60 | G3/4(F) | |
| 100-1000LPH | ||||
LZM-25G LZM-40G | 1-10 | 4-36 |
6-60 10-100 15-140 16-160 25-250 35-350 80-400 | 25G G1(F) 40G G11/2(M) | |
1-15 | 5-60 | ||||
2-20 | 10-70 | ||||
5-30 | 20-100 | ||||
5-40 | 20-150 | ||||
5-45 | 20-170 | ||||
20-60 | 80-220 | ||||
LZM-50G | 20-80 | 80-300 | 100-500 120-600 300-850 400-120 500-1400 | G2(F/M) | |
20-100 | 80-360 | ||||
40-120 | 150-450 | ||||
50-150 | 190-560 | ||||
60-200 | 220-750 | ||||
LZM-75GF | 120-300 | 450-1100 |
| G3(F) | |
The material and code of the parts of LZM-G series flow meter
Fitting | Float | O-ring |
1.ABS 2.PP 3.PVC 4.Brass 5.Brass chromeplate √6.SS | √1.SS
| 1.Silicon rebber 2.Fluorin rubber
|
Dimension of LZM-G Series Flow Meter
Model | Size | ||
A | B | C | |
LZM-10G | 187 | 130 | 22 |
LZM-15G | 210 | 180 | 32 |
LZM-20G | 278 | 236 | 45 |
LZM-25G | 265 | 235 | 51 |
LZM-40G | 306 | 235 | 51 |
LZM-50G | 380 | 270 | 75 |
LZM-75G | 392 | 298 | 110×110 |
