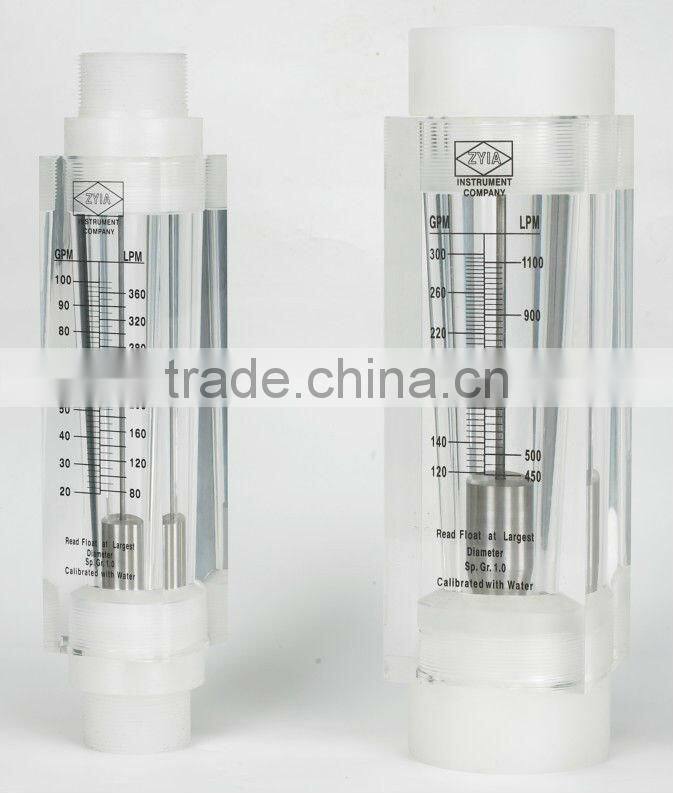

LZM-50G acrylic pipe liquid flow meter
- ningbo shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
LZM-25G large flow agriculture vertical liquid flow meter with alarm limit switch
Quality Choice
-
LZM-15G Female water flow meter with alarm limit switch
-
LZM-15G Type tube Flow Meter (Flowmeter) Water Flowmeter ,Air Flowmeter
-
High quality pipeline acrylic stainless steel flow meter
-
china supply tube type air flow meter & mechanical flow meter& low cost flow meter
-
LZM-G inline type air flow meter with alarm limit switch
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ZYIA | |
| Model Number | LZM-50G |
Product Description
LZM-G series Flow Meter (Flowmeter) Water Flowmeter ,Air Flowmeter
Technical Parameters of LZM-G Series Type Flow Meter
Model | Measure Range | Screw thread | Accuracy | ||
GPM | LPM | Nm3/h | |||
Liquid | Liquid | Gas | |||
LZM-10G |
| 5-45LPH |
| G1/2 | ±4% |
6-60LPH | |||||
10-100LPH | |||||
16-160LPH | |||||
LZM-15G | 0.02-0.2 | 4-40LPH |
| G1/2 | |
0.1-1 | 0.5-4 | 0.8-8 1-10 | |||
0.2-2 | 1-7 | 1.6-16 2.5-25 | |||
0.5-5 | 1.8-18 | 4-40 | |||
1.5-9 | 400-2000LPH | 6-60 | G3/4 | ||
LZM-20G | 1-10 | 4-36 | |||
1-15 | 5-60 | ||||
2-20 | 10-70 | ||||
5-30 | 20-100 | ||||
5-45 | 20-170 | ||||
| 100-1000LPH | ||||
LZM-25G LZM-40G | 1-15 | 5-60 |
| Z5G G1 40G 11/2 | |
2-20 | 10-70 | 6-60 10-100 | |||
5-30 | 20-100 | 15-140 16-160 | |||
5-40 | 20-150 | 25-250 35-350 | |||
5-45 | 20-170 | 80-400 | |||
20-60 | 80-220 |
| |||
LZM-50G | 20-80 | 80-300 | 100-500 | G2 | |
| 20-100 | 80-360 | 120-600 | ||
| 40-120 | 150-450 | 300-850 | ||
| 50-150 | 190-560 | 400-1200 | ||
| 60-200 | 220-750 | 500-1400 | ||
LZM-75GF | 120-300 | 450-1100 |
| G3 | |
The material and code of the parts of LZM-G series flow meter
Fitting | Float | O-ring |
1.ABS 2.PP 3.PVC 4.Brass 5.Brass chromeplate √6.SS | √1.SS
| √ 1.Silicon rebber 2.Fluorin rubber
|

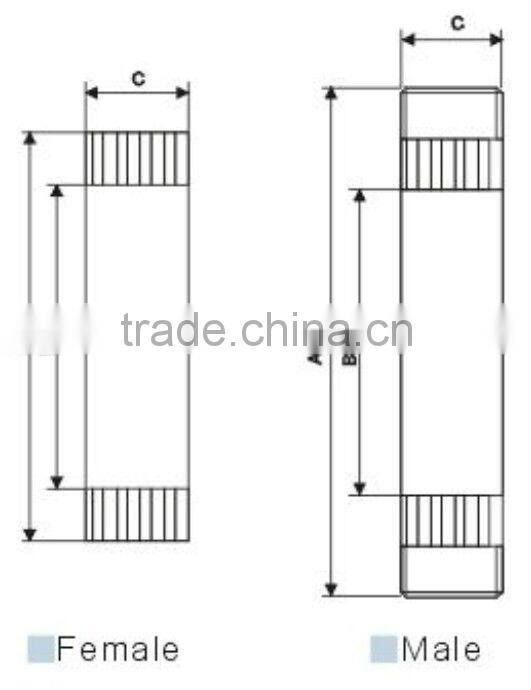

Dimension of LZM-G Series Flow Meter
Model | Size | ||
A | B | C | |
LZM-10G | 187 | 130 | 22 |
LZM-15G | 210 | 180 | 32 |
LZM-20G | 278 | 236 | 45 |
LZM-25G | 265 | 235 | 51 |
LZM-40G | 306 | 235 | 51 |
LZM-50G | 380 | 270 | 75 |
LZM-75G | 392 | 298 | 110×110 |
