LH type electric hoist overhead travel crane
US$ 100 - 100,000
/ Set
1 Set(Min. Order)
- Qingdao Port or Shanghai Port China
- Credit Card
You May Like
Product Details
| Condition | New | Application | Indoor | |
| Rated Loading Capacity | 5-32/10t | Rated Lifting Moment | 50-500/100KN | |
| Max. Lifting Load | 50ton | Max. Lifting Height | 18m | |
| Span | 10.5-31.5m | Place of Origin | Shandong, China | |
| Brand Name | HY | Model Number | QD | |
| Certification | ISO9001 BV OHSAS | Warranty | 18 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Cap:5-32/10T.H:6-30m2.Span:7.5m-31m
3.Working grade:A3-A5
4.Lifting mechanism:electric hoist
5.ISO,OHSAS certificate
1ton~50ton LH overhead crane
Double girder overhead hoist crane Features
1) Capacity: 5 – 32/10t
2) Span: 7.5 – 31.5m
3) Lifting Mechanism: CDI/MD1 hoist/trolley
4) Low noise, commodious and good view cabin
5) Convenient maintenance, excellent exchangeability for parts and components
6) Saves electricity
7) Operating Environment: -25 degrees~40 degrees
8) Steel track recommended:38kg/m or 43kg/m

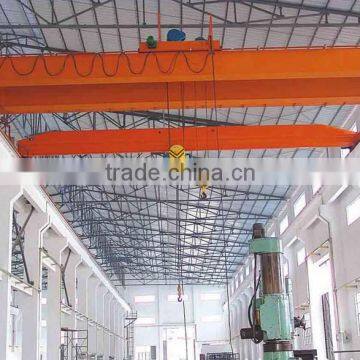

This model overhead crane is composed by main girder, end carriages, crane driving device, trolley and hoist, which mainly match CD1 and MD1 type Electric Hoist.
Its work conditions: -25- 40degrees, working duty: A3- A5, Operate method by Electric WIre with suspend handle , or remote control, or cabin control.
This type crane is mainly use in normal machinery manufacturing and places like assembling plants, storage houses, tor transport, load and unload materials.this type Crane is not suitable to work in burnable and explosible medium or in places which have high humidity and acid, alkali gases, Nor is suitable to lift and transport melted metals, poison and burnable materials.
| lifting capacity(t) | 20/5 | 32/10 | ||||
| span(m) | 7.5-31.5 | 7.5-31.5 | ||||
| lifting height(m) | 9-24 | 9-24 | ||||
| operational method | ground controlling;room controlling | ground controlling;room controlling | ||||
| speed(m/min) | main hoisting | 4.2 | 3(3/0.3) | |||
| aux. hoisting | 8(8/0.8) | 7(7/0.7) | ||||
| trolley travelling | 20 | 20 | ||||
| crane travelling | ground | 20 | 20 | |||
| room | 45 | 45 | ||||
| motor | main hoisting | ZD1 52-4/18.5 | ZDX62-6/18.5(ZDS2.2/18.5) | |||
| aux. hoisting | ZD1 41-4/7.5(ZDS1-0.8/7.5) | ZD1 51-4/13(ZDS1 1.5/13) | ||||
| trolley travelling | YDE90L-4(D)/1.5*2 | YDE100L1-4/2.2*2 | ||||
| crane travelling | ground | YDE90L-4(D)/1.5*2 | YDE100L1-4/2.2*2 | YDE100L2-4/3*2 | ||
| room | ZDR112L2-4/3*2 | YZRE132M1-4/4*2 | YZRE132M1-4/4*2 | ZDR125-4/4.6*2 | ||
| electric hoist | WH164;CD1(MD1) | WH164;CD1(MD1) | ||||
| work duty | A3-A5 | A3-A5 | ||||
| power source | 3-p 380V 50Hz | 3-p 380V 50Hz | ||||
| recommended track | P43 | P43 | ||||
Product Description
D
Safety guarantee
1.All the cranes are equipped with overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system and so on.
2.All operations are controlled by central control system.
Professional manufacturers and exporters
Quality guaranteed:
1.The whole machines would be guaranteed for one year.
2.Low charge for continue maintenance when warranty is expired.
3.All the standards which is required for the crane is the CE standard
FAQ
Welcome to sent us email or leave me message to tell me details of gantry crane demand so that I can sent you offer in shortest time:
- Lifting Capacity?
- Span?
- Lifting height?
- Industry voltage in your country?
