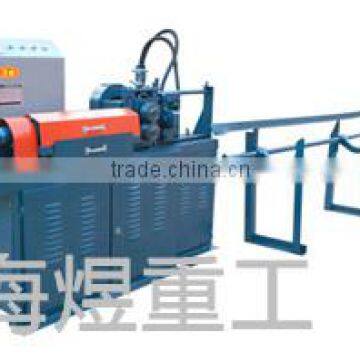

prestressed steel bar straightening and cutting machine
US$ 2,000 - 12,000
/ Piece
1 Piece(Min. Order)
- Qingdao Port China
You May Like
-
Steel Wire Heading Machine
-
steel cage welding and forming machine for concrete pipe
-
High-precision steel wire straightening and cutting machine
-
high-quality steel bar straightening and cutting machine
-
high precision hydraulic steel bar/steel wire straightening and cutting machine
-
hydraulic rebar straightening and cutting machine
Product Details
| Condition | New | Brand Name | HY | |
| Model Number | SYG Type | Voltage | Customized, 415 V or Customized | |
| Rated Power | 7.5kw-3phase | Weight | 1000KG | |
| Certification | ISO | Warranty | 12 months | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
Specially designed and fabricated for high accuracy demand purpose(error<=1mm). All key parts are fully hydraulic .High-Precision Steel Bar Straightening And Cutting Machine
HY-SYG Series steel bar straightening and cutting machine with length fixed is controlled and operated by computer . To improve long-distance cutting presicion , we adopt fully hydraulic technology which can cut steel bar whenever you want to stop. Main Features: Reliable working process, high-precision of length fixing, low error , environment friendly and energy-saving. It can be used for steel bar length-fixing cutting with diameter of 4-15mm . The cuting length can reache 80 meters .
Application:
Because it's high precision and complete hydraulic design, it's generally used in high-precision demand project such as prestressed concrete pole production , railyway project and bridge project etc.
Main Features:
1. Energy-Saving Total Power of whole machine: 7.5kw
2. Fast Feeding Speed:20-55m/min
3. Pre-set qty of steel bars. It means the machines will stop feeding steel bars when it gets set-value.
Technical Parametes
Type | SYG8/13Z |
| Type of Steel Bars | Cold drawn or high strength steel bar |
| Diameter of Steel Bar (mm) | 4~15 |
| Length of Cut Steel bar (mm) | 1000~15000(customized) |
| Accuracy (mm) | ≤1 |
| Cutting Speed(m/min) | 20~55m |
| Hight of Support legs(mm) | 160~890 |
| straightening Function | No(used for high strength steel bar) |
| Straightening Degree mm/m | 3 |
| Motor Power | 7.5KW |
