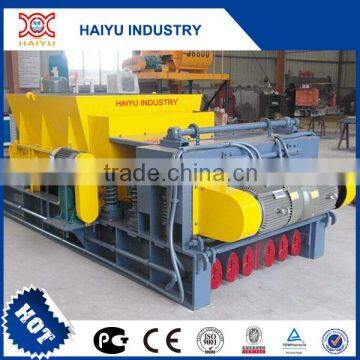

Precast concrete hollow core slab forming making machine
- Qingdao Port China
- T/T
You May Like
Product Details
| Condition | New | Application | Produce Wall Panel | |
| Automatic Grade | Automatic | Production Capacity | 1.3-1.5m/min | |
| Place of Origin | Shandong, China | Brand Name | HAIYU | |
| Model Number | SP-FC | Voltage | 380V | |
| Power(W) | 10.5KW | Dimension(L*W*H) | 250*130*90(cm) | |
| Weight | 1.5t | Features | Automatic | |
| Certification | ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
1. Overview
Hollow core slab making machine which is also called concrete slab machine works on the long-line platform , using the high-strength and steel reinforcement, using the pushing work method to forming the concrete hollow-core slab, concrete slabs and concrete fences. The slab have the advantages of smooth surface, high-density structure, capable of making construction slabs of 4.2m to 18m.
2. Technical Parameters
Machine Name | Model | Motor Power | Vibrator | Dimension | Weight | Molding Speed | Holes | Hole Diameter |
( KW ) | ( mm ) | ( m/min ) | ( mm ) | |||||
Hollow Core Slab Molding Machine | 120*600 | 5.5 | 3 | 2100*850*750 | 1050 | 1.2-1.4 | 5 | 76 |
50*500 | 3 | 0.8 | 1800*750*650 | 700 | 1.2-1.4 | 8 | 25 | |
50*500+80*500 | 4 | 1.5 | 2030*730*660 | 930 | 1.2-1.4 | 7 | 25 | |
100*600 | 4 | 2.2 | 2100*850*730 | 975 | 1.2-1.4 | 6 | 60 | |
90*600 | 4 | 2.2 | 2100*840*730 | 955 | 1.2-1.4 | 6 | 50 | |
60*500+80*500 | 4 | 1.5 | 2030*830*660 | 910 | 1.2-1.4 | 7 | 25 ( 42 ) | |
120*900 | 7.5 | 3 | 2500*1300*900 | 1580 | 1.2-1.4 | 8 | 76 |
3. Features
1.The concrete product produced by HQJ machine can also be used as roof of houses with the materials of cement, sand and aggregate.
2.HQJ panel machine is a movable producing panel machine which need platform to move during production.
3.Thin steel wire will be placed into panel in advance before production. And this process is easy, not using tensile machine.
4.The machine is applied to the high tech. Extrusion technique can make the panels
more density and surface much smoother.
Production Flow
1. Raw Materials
2. Batching and mixing
3. Materials transportation and production of wall panel
Auxiliary machine
Finished Products
Application
