Southeast Asia Country Standard concrete PHC Concrete pile machine

Shandong Haiyu Industry Co., Ltd is a leading manufacturer producing complete set of pre-stressed and reinforced spun concrete phc pile production mchines with passing ISO9001:2008 quality management system certificate.Recent years, adopting new technology to improve main machines to adapt to latest market demand and years of experience in manufacturing concrete pile machine,  psc and rcc concrete pole machines and concrete drainage and well pipe machines, Our company has not only sold our products very well in Asian countries(Cambodia,Laos,Vietnam,Afghanistan etc.),African countries(Kenyan, Ethiopia,Ghana,Sudan etc) and other countries but also developed and manufactured various kinds of advanced concrete products equipments and molds and building materials machinery equipments. Warmly and Sincerely Welcome To Visit Our Company !

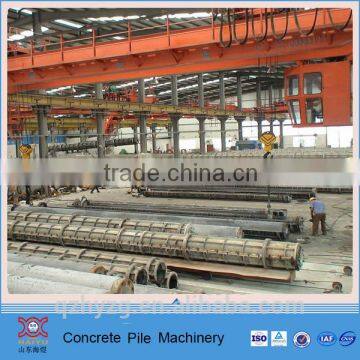

HAIYU PHC Concrete Spun Pile

PHC Concrete Spun Pile Category

          a,PHC

          b,PC

          c,PTC

 Specification:

1. Overview of Heavy Concrete Spun Pile Spinning Machine

Centrifugal spinning machine for prestressed spun concrete pile is a kind of mold equipment, which is a mainly forming equipment used for producing circular prestressed concrete piles, square prestressed concrete piles and other cement products with a variety of different diameter and length.

Centrifugal spinning machine for prestressed spun concrete pile is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete piles are good of quality.

The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are well sealed and reliable, long service. Random electric control equipment is complete and easy to operate.

2. Working Principle of Heavy Concrete Pile Spinning Machine

1)   Spun pile mold rotates with Centrifuge,  there are longitude stiffeners and latitude stiffeners around the surface.

2)   The redundant water in the concrete is released under the force of centrifuge and concrete gets dense and high strength.

3)   Spun pile spinning machine operates together with Pre-stressed concrete pile steel mold.

4)   Under the motor-driven, the slurry is divided into two-tier under the action of centrifugal force.

5)   The heavier solids deposited on the inner wall to form sediment layer, while the lighter liquid is separated from the formation of the inner fluid layer.

6)  The Sediment is released after dehydration, while the fluid is released.

3. Features of Heavy Concrete Spun Pile Spinning Machine

(1) Saving a great deal of steel, about 30~70% (employ cold-drawn steel wire can save 30%~60%; employ high stress steel wire can save 40%~69%).

(2) Crack resistance can increase by about 3~5 times.

(3) Rigidity increases 1~3 times.

(4) Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).

(5) Good durability, can delay the existence and expansion of cracks.

(6) Protect the environment on which human beings depend on for existence, and reduce the deforestation.

4. Parameters of Heavy Concrete Spun Pile Spinning Machine

1.Complete production line supporting machines and all necessary accessories with high performance and good quality;

2. Free Service of plant structure design and layout plan drawings and other necessary construction drawings and guidance of construction work,office, warehouse etc and related drawings according to customers’ requirements.

3.Installation and commissioning of all production machines as well as the workers training.
