Home > Products > 5Gen Core i7 Fanless Small Nettop > HTPC intel core i7 5500u 4GB RAM 8GB SSD WIN10 2.4GHz Max 3.0GHz project pc Fanless System PC

HTPC intel core i7 5500u 4GB RAM 8GB SSD WIN10 2.4GHz Max 3.0GHz project pc Fanless System PC

FOB Price

US$ 300.00 - 500.00 / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	Desktop
Screen Size	No Monitor	Processor Brand	Intel
Memory Capacity	Other, ≥ 4GB	Hard Drive Capacity	Other, ≥ 1.5TB
Graphics Card Type	Integrated Card	Display Type	Other, HDMI or VGA or DVI
Widescreen	No	Optical Drive Type	Other, USB external
Processor Main Frequency	2.4GHz Max 3.0GHz	Brand Name	Eglobal/OEM
Model Number	V7-5500u	Place of Origin	China

Product Description

low cost 8gb ram type of mini desktop computer with Intel Core i7 5500u/ 4500u

1. CPU Intel Core i7 5500u 2 core 4 threads 4MB cache 2.4GHz Max 3.0GHz TDP 15W Graphics HD 5500.

2. CPU Intel Core i7 4500u 2 core 4 threads 4MB cache 1.8GHz Max 3.0GHz TDP 15W Graphics HD 4400.

3. CPU Intel Core i5 5200u 2 core 4 threads 3MB cache 2.2GHz Max 2.7GHz TDP 15W Graphics HD 5500.

4. CPU Intel Core i5 5250u 2 core 4 threads 3MB cache 1.6GHz Max 2.7GHz TDP 15W Graphics HD 6000.

4. CPU Intel Core i5 5257u 2 core 4 threads 3MB cache 2.7GHz Max 3.1GHz TDP 15W Graphics HD 6100.

Port: 2*HDMI, 2*Gigabit Lan, 1*Opticd, 4* USB 3.0, 2 * USB 2.0, 1*SD Card Reader, 1*MIC, 1*SPK, 1*DC IN

System:

Free Operating System: Default installed our activated OEM cracked version Win7 or Win8 or the Newest Windows 10 OS in English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install.

Accessories as Ram, SSD, HDD, we use famous brand: Ram-Samsung DDR3L 1600MHz SO-DIMM etc, SSD-Samsung, Kingfast, T0shiba etc, HDD-WD, Seagate etc.

OEM Service For large order quantity:

1. Put your brand on the device housing by laser printing;

2. Put your own label below the device housing;

3. Supply Warranty Card on the package freely;

4. Make the booting interface to your company logo or brand freely;

5. Supply a HDMI cable with EGLOBAL brand freely for each PC.

Welcome to inquire us about detailed OEM service, we will give some pictures for your reference.

Project PC
computer Features:

1)- Beautiful: Industrial aesthetic design and Reasonable interface layout;

2)- Noiseless: Fanless system, low consumption, 0.00dB noise;

3)- Special: Support 64 bits computing Turbo boost Hyper-Threading Virtualization technology etc, Can install 1pc 2.5'' SSD or HDD and 2pcs MSSD(5CMx3CM) together(welcome to contact our Pre-Sales if you need it) up to 512GB SSD or 1TB Hardisk large volume; You can enjoy RAID speed Max up to Gigabit per second;

4)-Stable: Newest Intel Core i7 5500u+Broadwell structure+ Intel HD 5500 Graphics+Fanless professional passive cooling by alloy case, be able to work 24hours per day;

5)- Slim: Only 45mm body thickness, can stand on desk by free bracket we supply;

6)- Smooth: High-end Intel Graphics HD5500, fight again dedicated Graphics! Supportall online games, big 3D games, large-scale mapping software, blu-ray and 4K Ultra HD streams, full 1920*1080 HD resolution, 2*HDMI dual monitor display;

7)- Hi-Fi: High-end Audio card ALC 897 chip, suppor t 7.1 channel Sound, Intel Lynx Point-LP HDA;

8)- Strong: Work with any brand monitors; 2*RJ45 Gigabit Lan Nics+ 1*Optical Port+2*HDMI Suit for multiple application for example integrate with touch devices, industries, car repair shops, security, education, home as HTPC, business, fanancial and projects;

9)-Low-carbon green: TDP only 15W, very economical, saving a lot energy every year, low consumption but with a very amazing performance.

10)-Certification: CE, FCC & RoHS.

Project PC
computer Descriptions:

General
CPU	Onboard Intel Core i7 5500u 2.4GHz Max 3.0GHz(Turbo boost Technology) Dual Core Four Thread
CPU Slot	FCBGA 1168
CPU Technique	14nm
L3 Cache	3MB, CPU Integrated
BOIS	AMI BIOS, ACPI supported Support calls on function automatically Support Wake-On-LAN
Chipset	Intel Broadwell-U
Memory	2* SO-DIMM DDR3L Slot(1slot back of motherboard) Support 4GB/8GB/16GB Dual Channel, DDR3L 1333/1600 LPDDR 1333 /1600
Storage	SSD: 8G/16G/32G/64G/128G/256G/512G HDD: 160G/320G/500G/1TB
Operating System	Windows 7/Windows 8/Windows10/Linux
Audio	ALC897 chip, 7.1 channel sound Intel Lynx Point-LP HDA
Network	Onboard Redlrik RTL8168E PCI-E Gigabit Ethernet NIC Onboard RTL8111DL10/100Mbps/1000Mbps BaseT LAN
Video	Intel HD Graphics 5500(300~900MHz)
I/O port
front panel ports	1* Power indicator and switch, 4USB3.0, 1Opticd, 1SD Card Reader, 1MIC, 1*SPK
Backside ports	1* DC IN, 2HDMI, 2LAN port(RJ-45), 4*USB2.0
Internal ports	2M-SATA3.0 port, support 6Gb/s 1SATA3.0 port, support 6Gb/s 1mini-PCIE port(WIFI) 1mini-PCIE port(WIFI&Bluetooth)
Power and Working Environment
Input	DC100-240V AC/50-60Hz
Output	DC 12V~19V/6A
Operating Temperature	0/70 Centigrade(32F~140F)
Storage Temperature	-20/+85 Centigrade
Relative Humidity	0%~90% (non-condensing)
energy-saving	Support Energy-saving technology, Speedstep
64 bit computing	Support 64 bit computing
virtualization	Intel VT-x
hyper-threading	Support Hyper-Threading
Product Dimension & Details
Size	20818045MM
Weight	3kg
Consumption	15W~28W
Shell	Silver, gold, black color aluminum alloy
Package Accessories	Power Adapter, a Stand Holder, VESA Mount&Screws(optional)
IR & Remote Control	Can add, optional

Project PC

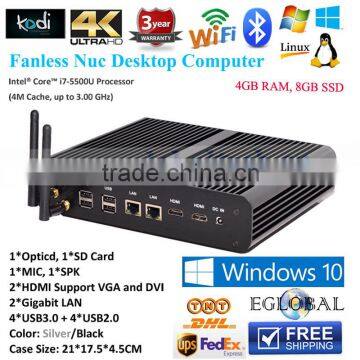

computer Pictures:

Project PC

Package Content:

1*Mini PC

1*Power adapter(EU/AM/BR/AU standard)

1*a Stand holder

1*VESA mount&screws(Optional)

Dual wifi antennas(Optional)

Buy with confidence! 3 Years long warranty for fanless system mini pc!
