Product Details
| D/C | IAC-A5D3X-CM | Package | BGA | |
| Model Number | IAC-A5D3X-CM | Brand Name | QY | |
| Place of Origin | Zhejiang, China |
Product Description
Embedded Hardware Linux Archives SOMs for Industrial Grade Applications
If the recent board resource do not satisfy you,contact us for customization service(ODM/OEM service).
Low cost high performance system modual/linux/Andriod cortex-A8/9/5 board
• Adopts Atmel SAMA5D3 series CPU, Cortex-A5 ARM Core, ARM v7-A instruction set, 536MHz;
• With floating point arithmetic unit, 64-bit internal bus architecture and 32-bit DDR controller, 166MHz. It owns high-precision calculation and quick data processing;
• Can choose different type of processor to get different function combination, optimize costs, and all models PIN compatibility;
• Extend 5-ch serial port,1-ch CAN bus, 2-ch Ethernet port;
• Power consumption ≤1W, owns low consumption mode function, the best selection for battery-powered application;
• Rich external interfaces, can replace Atmel ARM9 series products, and upgrade the product perfectly;
• Support Linux3.6 and Android 4.0.
Embedded Hardware Linux Archives SOMs for Industrial Grade Applications
Core Module Specifications:
CPU Processor
• ATMEL SAMA5D3X,Cortex A5 core • 536MHz
DDR RAM Memory
• 256MB DDR2 RAM,333MHz,32bit data bus
FLASH Storage
• On-board 2M DataFlash (45DB161D) • On-board 256M*8bits NandFlash (29F2G08ABAEA)could change a large capacity or industrial chip according to customer's requirement
Interfaces
• 2*100 pin 0.8mm spacing B to B connector
Other Onboard Resources
• DM9162 net chip,support 10M/100M Ethernet with MII mode,more compatible than RMII mode • Power management, support 1.8V,3.3V,5.0V voltage input
PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance • 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C) • Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5V Dc power supply, low power consumption, <2W
Support OS
• Linux 3.6.9 + QT4 • Android 4
Embedded Hardware Linux Archives SOMs for Industrial Grade Applications

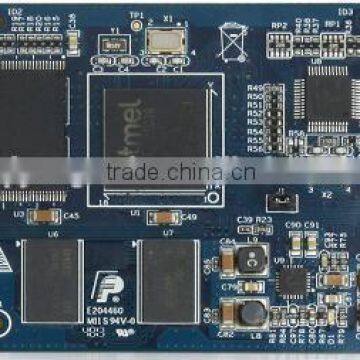

Detailed Image
Embedded Hardware Linux Archives SOMs for Industrial Grade Applications AMTEL som
Product Roadmap
Embedded Hardware Linux Archives SOMs for Industrial Grade Applications AMTEL som
Embedded Hardware Linux Archives SOMs for Industrial Grade Applications AMTEL som
Application:
• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.
SMT Factory
Accessory Warehouse
R&D Department
Embedded Hardware Linux Archives SOMs for Industrial Grade Applications AMTEL som
1.We provide the high performance SOM-series ARM-based module. Proven technology for underlying software and hardware, open source service, high efficient online after-sale service accelerate our customer’s development cycle.
2.OEM/ODM service will help you to achieve your ideal products. Rich experiences help us to open our customer's market quickly. ODM/OEM products right belongs to our customer.
3.Precision market positioning in industrial control area. Professional technology and attitude always let Qiyang win a great reputation in ARM embedded industry. Cooperate with Qiyang, benefit for both of us.
4.Qiyang ARM boards have already embedded in the various industrials. Touch with the end customers in different ‘’Face’’.
Why Qiyangtech?
1.Technical Support for lifetime.
2.Open Source.
3.Customisation Service.
4.Supply stably and chronically.
