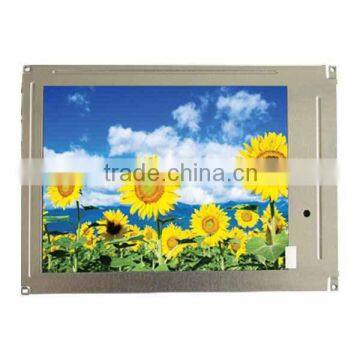

6.4' High Resolution TFT-LCD with Capacitive Touch Panel 640*R.G.B*480

Specifications

  6.4'TFT-LCD

TFT-LCD with Capacitive Touch Panel Structural Parameters

• Working Temperature:    -20°C ~ 70°C

• Storage Temperature:    -30°C ~ 80°C

• Panel Weight:    340g

• Surface Treatment:    matt surface

• Resolution:    640(RGB)x480(VGA)

• Aspect Ratio:    4:3

• Pixel Arrangement:    R.G.B

• Pixel Pitch:    0.2025x0.2030

• Display Area:    129.6x97.44 mm

• Visual Area:    134.8x101.8 mm

• Size:    175.4x126.9 mm

• Thickness:    12.5±0.5 mm

• Touch Screen:    NO

TFT-LCD with Capacitive Touch Panel  PD064VT4 Optical Property

• Display Mode:    TN, Normally White Display, transmittance

• Brightness:    400 cd/m2

• Contrast Ratio:    400 :1 (transmission)

• Display Color:    262K(6bit)

• Response Time:    15/25(Tr/Td) ms

• Viewing Angle:    55/55/40/55 (up/down/left/right)

• Optimal Viewing Angle:    6 o'clock

• White Field Chroma:    X:0.294;Y:0.308

• White Field Change:    1.25/1.33(Typ./Max.)(9points)

• Inversion Scanning:    flip(horizontal/vertical)

• Power Consumption:    4.82W

• Kind of Singnal Interface:    31 pins 1.0mm spacing HRS DF9A-31P-1V

• Signal Type:    TTL(1ch,6bit)

• Signal Interface Voltage:    5.0V

• Signal Interface Current:    100/120mA(Typ./Max.)

• Signal Interface Power:    500mW (Typ.)

• Backlight Tube Position:    side into type light source

• Lamp Type:    2pcs CCFL

• Lamp Life:    50,000 (h)

• Lamp Total Power:    4.32W(Typ.)

• Voltage of Lamp:    360V(Typ.)

• Current of Lamp:    6.0mA(Typ./Max.)

• Working Frequency of Lamp:    40KHz
