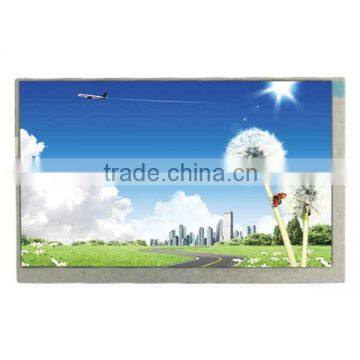

7' industrial TFT-LCD With Capacitive Touch Panel 800*R.G.B*480

Specifications

TFT-LCD With Capacitive Touch Panel EK700AT9309 Structural Parameters
• Working Temperature:    -20°C ~ 70°C

• Storage Temperature:    -30°C ~ 80°C

• Panel Weight:    131g

• Surface Treatment:    matt surface

• Resolution:    800(RGB)x480(WVGA)

• Aspect Ratio:    15:9

• Pixel Arrangement:    R.G.B

• Pixel Pitch:    0.1905x0.1905 mm

• Display Area:    152.40x91.44 mm

• Visual Area:    155.30x94.30 mm

• Size:    165.0x104.44 mm

• Thickness:    5.2 mm

• Touch Screen:    4-wire resistive screen optional

TFT-LCD With Capacitive Touch Panel EK700AT9309 Optical Property

• Display Mode:    TN, Normally White Display, transmittance

• Brightness:    250 cd/m2

• Contrast Ratio:    400 :1 (transmission)

• Display Color:    262K(6bit)

• Color Saturation:    45%

• Response Time:    5/11(Tr/Td) ms

• Viewing Angle:    70/70/60/70 (up/down/left/right)

• Optimal Viewing Angle:    6 o'clock

• White Field Chroma:    X:0.299;Y:0.238

• Inversion Scanning:    60HZ

• Inversion Scanning:    NO

• Power Consumption:    2.718W

• Kind of Signal Interface:    40 pins 0.5mm spacing FPC

• Signal Type:    Parallel RGB(1ch,6bit)

• Signal Interface Voltage:    3.3V

• Signal Interface Current:    200/260mA(Typ./Max.)

• Signal Interface Power:    600mW (Typ.)

• Backlight Tube Position:    side into type light source

• Lamp Type:    3S5PWLED

• Lamp Life:    20,000 (h)

• Lamp Total Power:    1.90W(Typ.)

• Backlight Input Voltage:    9.9V(Typ.)

• Backlight Input Current:    100/125mA(Typ./Max.)
