ATMEL Cortex-A5 (SAMA5D3X) 256MB DDR2 RAM 2 CANBUS ARM Low Cost Dev Board

ATMEL Cortex-A5( A5D3X )

 1.Atmel SAMA5D3 CPU, 536MHz ARM Cortex-A5 core ARM v7-A ISC
2.With floating point arithmetic unit,64-bit inside Bus architecture and 32-bit wide DDR controller,operation frequency up to 166MHz,high accuracy calculation and rapid processing data application;
3. Can choose different type of processor to get different function combination, optimize costs, and all models PIN compatibility;
4.Can expand 7-ch port, 2-ch CAN bus, 2-ch Ethernet interface;
5. Whole board runs with high-speed, and power consumption is lower than 1 w, with functions of low power consumption mode,which is ideal for battery-powered applications;
6.Abundant external interfaces, can replace Atmel ARM9 series products, and upgrade the product perfect;
7.Support linux 3.6 and android 4.0.

A5D3X Cortex A5 Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2*100 B to B connectors lead various commonly used interfaces; suitable for batch users.

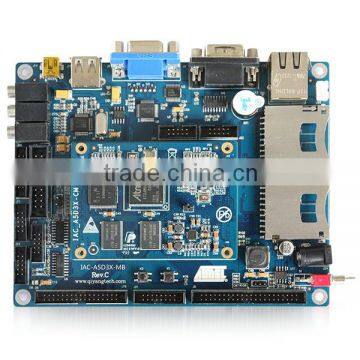

A5D3X Development Board is a general standard reference design board for A5 core board, with commonly used interfaces, such as TFT-LCD, touch screen, VGA, CAN bus, gigabit network interface, high-speed USB HOST, SD card, RS232485 serial port, audio, MIC, etc; support +6V~+23V wide range voltage power supply; can provide a complete design material for user to develop or custmize.

ATMEL Cortex-A5 Stamp Module Specifications

ATMEL Cortex-A5  ( A5D3X ) Software & Technical Support
