Home > Products > ARM System On Module > SAMA5D3 ARM Cortex-A5 Core Module

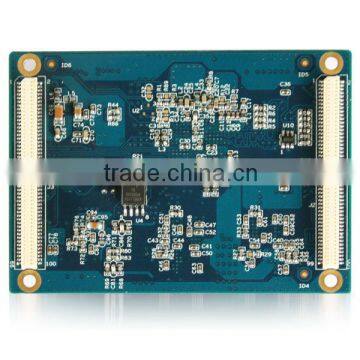

SAMA5D3 ARM Cortex-A5 Core Module

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shanghai/Shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	Cortex-A5		Type	Other, Atmel
Brand Name	QY		Place of Origin	Zhejiang, China

Product Description

Specifications

SAMA5D3 ARM Cortex-A5 Microprocessors
1.Atmel SAMA5D3 CPU, 536MHz
2.ARM Cortex-A5 core ARM v7-A ISC
3.Support linux 3.6 and

SAMA5D3 ARM Cortex-A5 Core Module Specifications:

CPU processor
•ATMEL SAMA5D3X,Cortex A5 core
• 536MHz

DDR RAM Memory
• 256MB DDR2 RAM,333MHz,32bit data bus

FLASH Storage
• On-board 2M DataFlash (45DB161D)
•On-board 256M*8bits NandFlash (29F2G08ABAEA)could change a large capacity or industrial chip according to customer's requirement

Interfaces
• 2*100 pin 0.8mm spacing B to B connector

Other Onboard Resources
• DM9162 net chip,support 10M/100M Ethernet with MII mode,more compatible than RMII mode

• Power management, support 1.8V,3.3V,5.0V voltage input.

PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm

Working Parameters
•Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
•Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption
• 5V Dc power supply, low power consumption, <2W

Support OS
• Linux 3.6.9 + QT4
• Android 4

Industrial Cortex-A5 CPU!!

Processor performance improve greatly;
Provide complete design data;
4-type CPU for different applicaiton;
Optimize resources, maximum interface demand ;
...

Professional Hardware Design!

Pay attention to details,thoroughly defeat learning board;
Professional wiring, easy on testing;
The core board: 6- layer PCB design;

...

Abundant Interface Resource!

Stable,abundant interface project;
UART(A5D35 with own 7-ch);
CAN(A5D345with own 2-ch);
LCD & VGA interface;
Multiplexing IO reserved;

…

Industrial Connection Device!

Core board connect with back plane stable;
2 x 100 pin 0.8 space;
Excellent electric performance and environment performance;

…

A5D3X-Cortex A5 core boardadopts ATMEL SAMA5D3X series chip,Cortex-A5 core,standard configuration is SAMA5D34.The users can choose different types of appropriate processor chip to reduce cost(only for bulk users).Difference about the model ,please see the form below:

	SAMA5D31	SAMA5D33	SAMA5D34	SAMA5D35
LCDC	√	√	√
GMAC		√	√	√
EMAC	√			√
CAN0,CAN1			√	√
HSMCI2	√		√	√
UART0	√			√
UART1	√			√
TC1				√

A5D3X Cortex A5 core board is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2 x 100 BtoB connectors boot various commonly used interfaces;The users can choose different types of appropriate processor chip to reduce cost(only for bulk users).

SAMA5D3 ARM Cortex-A5 Core Module Software & Technical Support

SAMA5D3 ARM Cortex-A5 Core Module Technical Support:

• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)

SAMA5D3 ARM Cortex-A5 Core Module Order Infomation

Item	IAC-A5D3X-CM
Standard Accessories	(1) CD of DVD development(2)packing box
DVD Resources	Linux	Compilers	Cross-compiler arm-linux-gcc
		Tool software	Supporting terminal, writing, download tools
		Device manual	Main components' datasheet of back plane
		User manual	About all development and use
		Image file	Image file of bootstarp, u-boot, kernel and file system
		Test source code	Test routines and source codes of all interfaces
		System source code	Including bootstrap, u-boot, file system and QT source code
		Schematic	Back plane's schematic in PDF format
		PCB Library	PCB library of Eval. board's back plane
LCD options(another pay)	4.3'LCD module + 4-wire resistive touch screen + USB cable
	5.6'LCD module + 4-wire resistive touch screen + USB cable
	6.4'LCD + 4-wire resistive touch screen + USB cable + inverter
	7'LCD module + 4-wire resistive touch screen + USB cable
	8'LCD module + 4-wire resistive touch screen + USB cable
	10.4'LCD + 4-wire resistive touch screen + USB cable + inverter
Module options(another pay)	TTL to LVDS module
Module options(another pay)	TTL to VGA module
Sales hotline	86-571-87858811;86-571-87858822

SAMA5D3 ARM Cortex-A5 Core Module Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.

Our Advantage:

[Notes]

Have an intention & interest in them. Join us.

pay pal acceptable

Need Hardware Manual &More Information& Consultant ,please add my skype:sally_ma.198907 (24 hours online)
