Atmel9260 Cheap Price ARM Development Board With LAN

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port SHANGHAI\NINGBO
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

D/C	EZ9260-EVB	Package	1PC
Model Number	EZ9260-EVB	Type	Other, Atmel
Brand Name	QY	Place of Origin	Zhejiang, China

Product Description

ARM Development Board Specifications

Core Module Board is designed by 6-floor PCB; the volume is only card size; together with CPU, SDRAM, NandFlash, DataFLash, network; using 3.3V dc power supply, low power consumption; 2-wire 2*30P connectors lead various commonly used interfaces; suitable for the customers those who not plan to design CPU board by themselves next devolop.

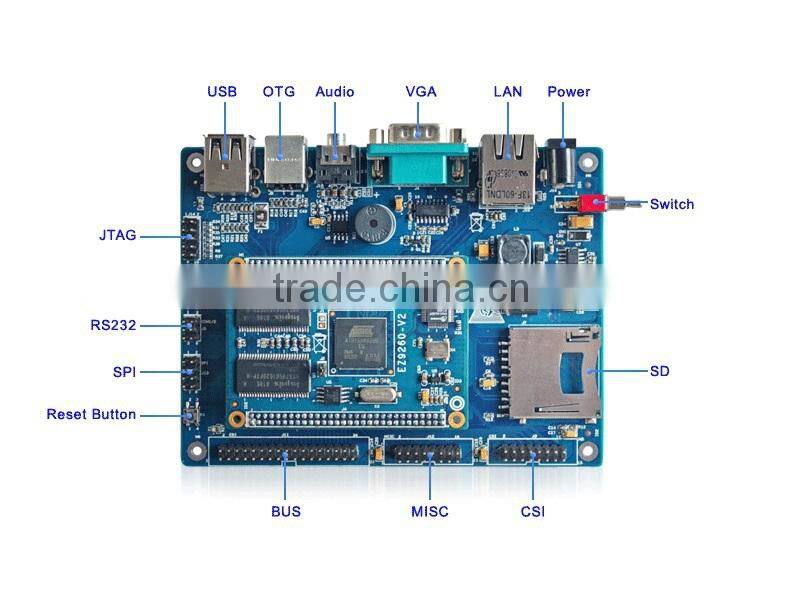

Development(Evaluation) Board a general standard reference design board for EZ9260-EVB, with commonly used interfaces, such as image sensor interface, RS232 serial port, external bus, SPI, PWM, high-speed USB HostDevice, network, SD card, MISC interface(ADC, timer IO, TTL serial port), audio, MIC etc; support +6V~+23V wide range voltage power supply; can provide a complete design material for user to develop or custmize.

Cheap Price ARM Development Board Stamp Module Specifications

CPU Processor
• ATMEL AT91SAM9260, ARM926EJ-S Core
• 200MHz

SDRAM Memory
• 64MB SDRAM, 2-piece 4Banks x 4Mbitsx16bits SDRAM

FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B), could change large capacity or industrial chip according to customer's requestc

Interfaces
• 2-piece 2*30PIN, 2.0 spacing connectors, simple, convenient and reliable.

Other Resources
• DM9161 net chip, support 10M/100M Ethernet with MII mode, more compatible than RMII;
• DS1337 clock chip, 32.768RTC clock source, work precisely

PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm

Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption
• 3.3V Dc power supply, low power consumption, <1W
Support OS
• Linux2.6.30
• WindowsCE 5.0

ARM Development Board Software & Technical Support

Development Board PCB Specification & Size

•Using four floors of PCB high precision process

132 x 100 x 1.5mm

Development Board Working Parameters

• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Linux Software Features

Cross-compiler	arm-2007q1-10-arm-none-linux-gnueabi-i686-pc-linux-gnu.tar.bz2	arm-linux-gcc 4.2
U-boot	Version: U-boot 1.3.4	Provided with bootstrap, U-boot source code
	Support writing into DataFlash and NandFlash start
	Support SAM-BA software with usb writing and TFTP network update
Linux Kernel	Version: 2.6.30
	RTC driver, save and restore system time after power off	Provided with test program and source code
	SPI driver	Provided with test program and source code
	EBI driver	Provided with test program and source code
	I2C driver	Provided with test program and source code
	Audio driver	Provided with test program and source code
	ADC driver	Provided with test program and source code
	Serial driver	Provided with test program and source code
	Counter(TC)	Provided with test program and source code
	Buzzer driver	Provided with test program and source code
	GPIO driver	Provided with test program and source code
	USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc.	Support various USB external devices, provided with debug service
	SD card driver	Support large capacity storage SD card
File System	Jffs2 file system	Provided with source code
PC Development Environment	Provided with ubuntu 10.10 Linux OS, VMware 7.1.4 virtual machine and supporting development environment build manual	Convenient for user to next develop

WindowsCE 6.0 Software Features

Bootloader	Support writing into DataFlash and NandFlash start	Optional
BSP Source Code
BSP(Open Source )	RTC diver, save and restore system time after power off	Provided with test program and source code
	Registry saving, support saving registry information when electricity adjusted	Convenient for user to debug
	SD card driver	Biggest support 4G
	Audio driver, support audio input/output and MIC input	Provided with test program and source code
	Nic driver, 10/100M self-adaptive, can be expanded gigabit nic	Provided with test program and source code
	IO interrupt	Provided with test program and source code
	Buzzer driver	Provided with test program and source code
	SPI driver	Provided with test program and source code
	232, 485 serial driver test	Provided with test program and source code
	USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc.	Support various USB external devices, provided with debug service
PC Development Environment	Provided with supporting EVC development tools, Wince 5.0 plug-in	Convenient for user to next develop

ARM Development Board Technical Support:

• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)

Cheap Price ARM Development Board Order Information

Item	EZ9260-EVB
Standard accessories	1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)2-wire RS232 serial line (5)1-wire USB download line (6)exquisite packing box
DVD resources	Linux	Compilers	Cross-compiler arm-linux-gcc
		Tool software	Supporting terminal, writing, download tools
		Device manual	Main components' datasheet of back plane
		User manual	About all development and use
		Image file	Bootstarp, u-boot, kernal, image file of file system
		Test source code	Test routines and source codes of all interfaces
		System source code	Including bootstrap, u-boot, kernel, file system and QT source code
		Schematic	Back plane's schematic in PDF format
		Packaging library	Component packaging library of evaluation board
	Windows CE	Tool software	Tool software
		Device manual	Main components'datasheet of back plane
		User manual	About all development and use
		Image file	Firstboot, Eboot, NK image file
		Test source code	Test routines and source codes of all interfaces
		BSP package	Related BSP board-level supporting package
		SDK	Related SDK
		Schematic	Back plane's schematic in PDF format
		Packaging library	Component packaging library of evaluation board
Module options(another pay)	TTL to LVDS module
Module options(another pay)	TTL to VGA module
Sales hotline	+86-571-87858811, 87858822

Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.
