Product Details
| Model Number | IAC-A5D3X-Kit | Type | Other, Atmel | |
| Brand Name | QY | Place of Origin | Zhejiang, China |
Product Description
Specifications
Cortex-A5 ARM Development Kit1.ATMEL SAMA5D3X,Cortex A5 core 536MHz
2.256MB DDR2 RAM
3.2M DataFlash
4.256M NandFlash
Atmel A5D3X Cortex-A5 Development Board--- ARM ( A5D3X )
1.Atmel SAMA5D3 CPU, 536MHz ARM Cortex-A5 core ARM v7-A ISC
2.With floating point arithmetic unit,64-bit inside Bus architecture and 32-bit wide DDR controller,operation frequency up to 166MHz,high accuracy calculation and rapid processing data application;
3. Can choose different type of processor to get different function combination, optimize costs, and all models PIN compatibility;
4.Can expand 7-ch port, 2-ch CAN bus, 2-ch Ethernet interface;
5. Whole board runs with high-speed, and power consumption is lower than 1 w, with functions of low power consumption mode,which is ideal for battery-powered applications;
6.Abundant external interfaces, can replace Atmel ARM9 series products, and upgrade the product perfect;
7.Support linux 3.6 and android 4.0.
Industrial Cortex-A5 CPU!Processor performance improve greatly; | Professional Hardware Design!Pay attention to details,thoroughly defeat learning board; … | Abundant Interface Resource!Stable,abundant interface project; … | Excellent Industrial Connection Device!Core board connect with back plane stably; … |
| SAMA5D31 | SAMA5D33 | SAMA5D34 | SAMA5D35 | |
|---|---|---|---|---|
| LCDC | √ | √ | √ | |
| GMAC | √ | √ | √ | |
| EMAC | √ | √ | ||
| CAN0,CAN1 | √ | √ | ||
| HSMCI2 | √ | √ | √ | |
| UART0 | √ | √ | ||
| UART1 | √ | √ | ||
| TC1 | √ |

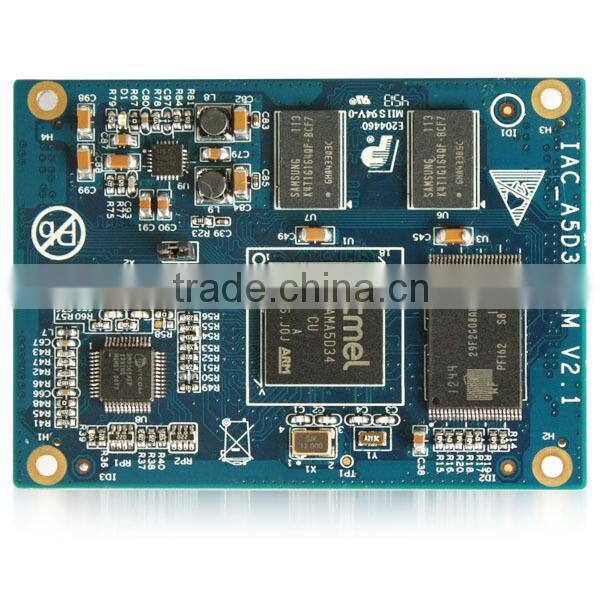

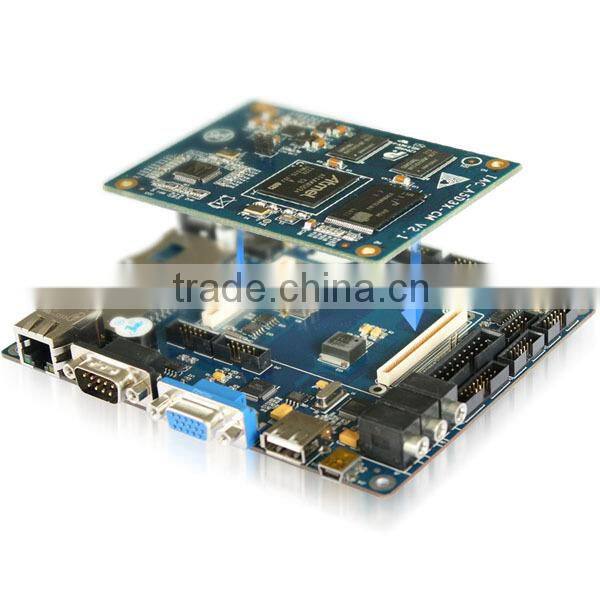

A5D3X Cortex A5 Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2*100 B to B connectors lead various commonly used interfaces; suitable for batch users.
A5D3X Development Board is a general standard reference design board for A5 core board, with commonly used interfaces, such as TFT-LCD, touch screen, VGA, CAN bus, gigabit network interface, high-speed USB HOST, SD card, RS232485 serial port, audio, MIC, etc; support +6V~+23V wide range voltage power supply; can provide a complete design material for user to develop or custmize.
Atmel A5D3X Cortex-A5 Development Board---ARM Stamp Module Specifications
Core Board Resource Introduction:
CPU Processor
• ATMEL SAMA5D3X,Cortex A5 core
• 536MHz
DDR RAM Memory
• 256MB DDR2 RAM,333MHz,32bit data bus
FLASH Storage
• On-board 2M DataFlash (DB45161D) A5D3X
• On-board 256M*8bits NandFlash (K9F2G08U0B)could change a large capacity or industrial chip according to customer's requirement
• 2*100 pin 0.8mm spacing B to B
Other Onboard Resource
• DM9162 net chip,support 10M/100M Ethernet with RGMII mode
• Power management, provide 1.8V, 3.3V,5.0V Voltage input
PCB Specification & Size
• Using 6-lay PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working temperature
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5v Dc power supply, low power consumption, <1W
OS Support
• Linux 3.6.9 + QT4
• Android 4

Atmel A5D3X Cortex-A5 Development Board--- ARM ( A5D3X ) Software & Technical Support

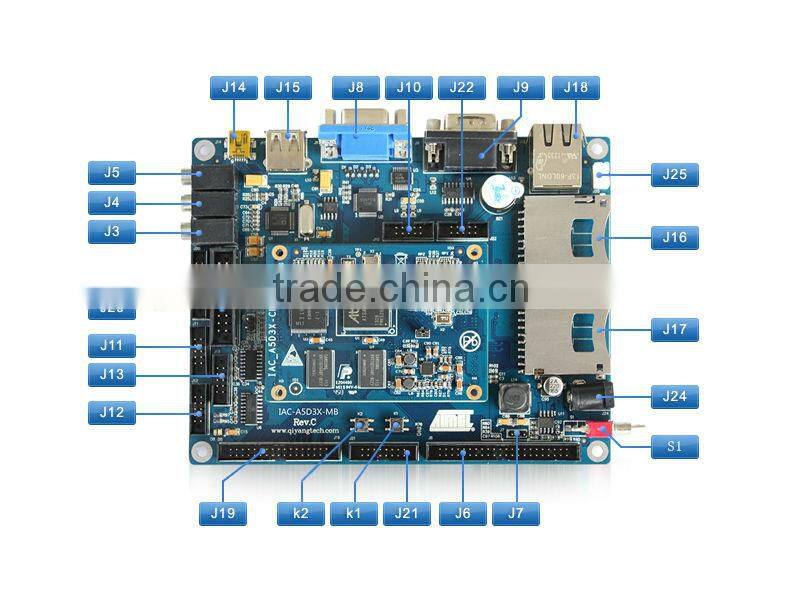

| NO. | Item | Function |
|---|---|---|
| J3 | Audio output interface | Audio output |
| J4 | Route input interface | Audio input |
| J5 | MIC input interface | MIC input |
| J6 | TFT-LCD,Touch screen | Expand color LCD screen, drive 4-wire resistive touch screen |
| J7 | TFT-LCD Power | 3.3V/5V optional power supply jumper |
| J8 | VGA interface | VGA video output, and display connection |
| J9 | Debug serial port | Download, communication |
| J10 | COM 1 | 232485 |
| J11 | COM 2 | 232485 |
| J12 | COM 3 | RS232 |
| J13 | COM 4 | RS232 |
| J14 | USB 2.0 Device | High-speed USB(480MHz) for downloading program |
| J15 | USB 2.0 Host | USB Host |
| J16 | SD card interface 1 | SD card storage |
| J17 | SD card interface 2 | SD card storage |
| J18 | Ethernet interface | 10/100M Ethernet |
| J19 | EBI bus interface | CPU internal bus |
| J20 | Monitor interface | COMS interface,Video acquisition or used as a GPIO |
| J21 | Matrix keyboard | 8 x 8 keyboard interface, can used as GPIO |
| J22 | SPI interface | SPI bus interface |
| J23 | Standard JTAG interface | Simulation, Debugging |
| J24 | Power interface | 12V power input, support +6 ~+25V wide range power supply |
| J25 | Power output | 3.3V/5V output |
| K1 | Reset button | System reset |
| K2 | Wake-up button | Sleep state activation |
| S1 | Power swith | Control power supply |
Atmel A5D3X Cortex-A5 Development Board--- ARM (Cortex-A5) Technical Support:
• The problems that customer encounter in the process of development on the products• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)
Atmel A5D3X Cortex-A5 Development Board--- ARM (Cortex-A5) Order Infomation
| Item | IAC-A5D3X-Kit | ||
|---|---|---|---|
| Standard accessories | (1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)4-wire RS232 serial line (5)mini USB wire (6) packing box | ||
| DVD resources | Linux | Compilers | Cross-compiler arm-arago-linux-gnueabi |
| Tool software | Supporting terminal, writing, download tools | ||
| Device manual | Main component's datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | bootstarp,u-boot, kernel and file system | ||
| Test source code | Test routines and source codes of all interfaces | ||
| Including bootloader, kernel, file system, QT source code and madplay | ||
| Schematic | Back plane's schematic in PDF format | ||
| Packaging library | Component packaging library of evaluation board | ||
| LCD options(another pay) | 4.3' LCD module + 4-wire resistive touch screen + USB cable | ||
| 5.6' LCD module + 4-wire resistive touch screen + USB cable | |||
| 6.4' LCD+ 4-wire resistive touch screen + USB cable + inverter | |||
| 7' LCD module + 4-wire resistive touch screen + USB cable | |||
| 8' LCD module + 4-wire resistive touch screen + USB cable | |||
| 10.4' LCD+ 4-wire resistive touch screen + USB cable + inverter | |||
| Module options(another pay) | TTL to LVDS module | ||
| TTL to VGA module | |||
| Sales hotline | 86-571-87858811,86-571-87858822 | ||
Atmel A5D3X Cortex-A5 Development Board--- ARM ( A5D3X ) Application:
• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.
