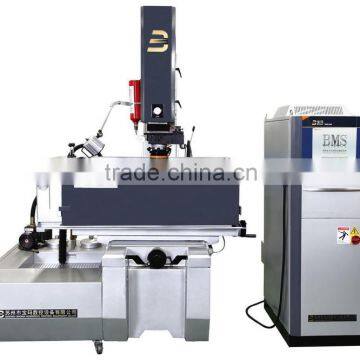

High Quality EDM die sinking machine

FOB Price

US$ 1.4444 - 666,666 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Baoma
Model Number	EDM540ZNC	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Finishing roughness: 0.4um
Sinker EDM machine machining speed: 450mm3/min
EDM electrode consumption: 0.3%

Parameters		UNIT	EDM540ZNC
Working Tank (LxWxH)		mm	1270 x 750 x 470

Table Size (LxW)		mm	800 x 500
Travel Size	X	mm	500
	Y	mm	400
	Spindle Travel(Z)	mm	200
	Auxiliary Travel(Z)	mm	300
Distance between Spindle Nose to Work Table	Min.	mm	128
Distance between Spindle Nose to Work Table	Max.	mm	635
Max. Table Load (Workpiece weight)		mm	1300
Max. Spindle Hold (Electrode weight)		kg	150
Oil Tank		L	540
Oil Tank Dimension (LxWxH)		mm	1400 x 900 x 450
Control Method			DC (Japan SANYO)
Rated Current		A	60
Machine Dimension (LxWxH)		mm	2200 x 1700 x 2500
Machine Weight		kg	2200

Max. Working Current	Best Speed / Efficiency	Best Electrode Loss	Best Surface Finishing	Input Power
60A	400 mm³/ min.	≤0.3%	Ra≤0.2um	7 KVA

Items		Resualt
Flatness of the workbench		0.03mm / 1000
X Axis Movement Straightness	in Y-X plane	0.015/ 500
X Axis Movement Straightness	in Z-X plane	0.015 / 500
Y Axis Movement Straightness	in X-Y plane	0.015 / 500
Y Axis Movement Straightness	in Z-Y plane	0.015 / 500
Z- Axis Movement Straightness (Spindle Perpendicularity )	move on X axis	0.02 / 200
Z- Axis Movement Straightness (Spindle Perpendicularity )	move on Y axis	0.02 / 200
Parallelism of work table	move on X axis	0.015 / 300
Parallelism of work table	move on Y axis	0.015 / 300
X-Y Axis Squareness		0.015 / 500


Resine Sand Casting	Machine Body : HT250
Resine Sand Casting	Work Table: HT300
X/Y Axis:	Manual Hand Wheel
	"TEFLON" face V type Hard way
	Precision Ball Screw

Z Axis:	JANPAN SANYO DC Servo
	TAIWAN "ABBA" V type Hard Way+ T Screw
	JAPAN NSK Bearing

Universal	Italy GRUNDFOS or Taiwan WALRUS Oil Pump
	Taiwan Automatic Fire Extinguisher

	Taiwan Halogen work lamp
	Taiwan Skeet chuck
