Home > Products > DIE SINKING EDM > Die sinkering EDM Machine EDM450ZNC

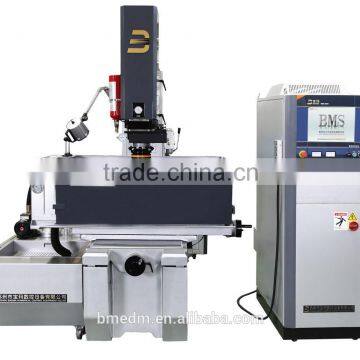

Die sinkering EDM Machine EDM450ZNC
US$ 1.8686 - 555,555,555
/ Set
1 Set(Min. Order)
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Baoma | |
| Model Number | EDM450ZNC | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications / Parameters
| Parameters | UNIT | EDM450ZNC | |
|---|---|---|---|
| Working Tank (LxWxH) | mm | 1200 x 650 x 450 | |
| Table Size (LxW) | mm | 700 x 400 | |
| Travel Size | X | mm | 450 |
| Y | mm | 300 | |
| Spindle Travel(Z) | mm | 200 | |
| Auxiliary Travel(Z) | mm | 200 | |
| Distance between Spindle Nose to Work Table | Min. | mm | 58 |
| Max. | mm | 450 | |
| Max. Table Load (Workpiece weight) | mm | 1000 | |
| Max. Spindle Hold (Electrode weight) | kg | 150 | |
| Oil Tank | L | 470 | |
| Oil Tank Dimension (LxWxH) | mm | 1260 x 780 x 450 | |
| Control Method | DC (Japan SANYO) | ||
| Rated Current | A | 60 | |
| Machine Dimension (LxWxH) | mm | 1800 x 1500 x 2200 | |
| Machine Weight | kg | 1800 | |
» Current Parameters
| Max. Working Current | Best Speed / Efficiency | Best Electrode Loss | Best Surface Finishing | Input Power |
| 60A | 400 mm³/ min. | ≤0.3% | Ra≤0.2um | 7 KVA |
» Accuarcy | Precision (Standard:GB/T 5291.1—2001)
| Items | Resualt | |
|---|---|---|
| Flatness of the workbench | 0.03mm / 1000 | |
| X Axis Movement Straightness | in Y-X plane | 0.015/ 500 |
| in Z-X plane | 0.015 / 500 | |
| Y Axis Movement Straightness | in X-Y plane | 0.015 / 500 |
| in Z-Y plane | 0.015 / 500 | |
| Z- Axis Movement Straightness (Spindle Perpendicularity ) | move on X axis | 0.02 / 200 |
| move on Y axis | 0.02 / 200 | |
| Parallelism of work table | move on X axis | 0.015 / 300 |
| move on Y axis | 0.015 / 300 | |
| X-Y Axis Squareness | 0.015 / 500 | |
» Configuration | Setup
| Resine Sand Casting | Machine Body : HT250 |
|---|---|
| Work Table: HT300 | |
| X/Y Axis: | Manual Hand Wheel |
| "TEFLON" face V type Hard way | |
| Precision Ball Screw | |
| Z Axis: | JANPAN SANYO DC Servo |
| TAIWAN "ABBA" V type Hard Way+ T Screw | |
| JAPAN NSK Bearing | |
| Universal | Italy GRUNDFOS or Taiwan WALRUS Oil Pump |
| Taiwan Automatic Fire Extinguisher | |
| Taiwan Halogen work lamp | |
| Taiwan Skeet chuck | |
