Customized esd surface resistance monitor with low price

Customized esd surface resistance monitor with low price

esd surface resistance monitor

digital surface resistivity meter

tester

Tester

ES46101 Wrist Strap Tester
The wrist strap tester is complete personal
ground test system. The tester will verify the
connections while the strap is still on the
operator's wrist. Red LED and an audible alarm
indicate faulty connections("Fail HI"). Red LED
and an audible alarm indicate low resistance or
failed resistor ("Fail LO"). Green LED indicates
proper grounding("OK"). Test parameters are
factory set to pass 900K-35M, but are adjustable
to match your own specifications.

Standard 35MΩ for wrist strap
LED display resistance value(+5%) indicator
Test voltage: Regulated 9 volts DC
Relative humidity : 0% to 90% (non-condensing)
Accuracy: ±5%
Weight: 145g
Feature: battery low indicator

ES46102 Wrist Strap Tester
The Wrist Strap tester is complete personal
ground test system. The tester will verify the
connections while the strap is still on the
operator's wrist. Red LED and an audible alarm
indicate faulty connections("Fail HI"). Red LED
and an audible alarm indicate low resistance or
failed resistor ("Fail LO"). Green LED indicates
proper grounding("OK"). Test parameters are
factory set to pass 900K-35M, but are adjustable
to match your own specifications.

Standard 35MΩ for wrist strap
LED display resistance value(+5%) indicator
Test voltage: regulated 9 volts DC
Relative humidity : 0% to 90% (non-condensing)
Accuracy: ±5%
Weight: 145g
Feature: battery low indicator

ES46103 Wrist Strao Tester
Can be used anywhere to check different grounding systems
easily
Ensure safety of operators
 Eliminates product defects caused by static electricity
Power Supply: 9V dry battery
Operating Environment: 0 to 40 oC, 20 to 90%RH, no dew
formation
Grounding wire: 2.5m
LED indication: calibration resistance: buzzer
Operating environment: R> 0 to 40 oC, 20 to 90%RH

ES46104 Wrist Strap Tester
Can be used anywhere to check different grounding systems easily
Ensure safety of operators
Eliminates product defects caused by static electricity
Input Voltage: DC 6V
Material: Polystyrene
Dimension: 67*60*29mm
Weight: 60g(power supply adaptor not included)

ES46105 Wrist Strap Tester
Can be used anywhere to check different grounding systems easily
Ensure safety of operators
Eliminates product defects caused by static electricity.
Input voltage: DC 6V
Material: Polystyrene
Dimension: 110*60*26mm
Weight:1 10g(power supply adaptor not included)

ES46106 Surface Resistance Tester
Can be used anywhere to check different grounding systems easily
Easy control
Led light display
Operating temperature: 0C~50C
Relative humidity: 0%~90%RH
Test voltage: 9V
Dimension: 137*76*30MM
Weight: 120g
Accuracy: 10%
Repeatability: ± 5%

ES46201 Combo Resistance Tester
Anti-static wrist strap,right foot and left foot volume resistance can be measured simultaneously,LED status indication:HIGH,PASS, or LOW
Standard set measurement range
                       Static shoes test                Wrist strap test               Alarm sound

HIGH                 R>100M Ohm                     R>10M Ohm                           Y

PASS                  R>=750K Ohm                    R>=750K Ohm                         Y
                         R<=100M Ohm                    R><=10M Ohm                       Y

LOW                 R<750K Ohm                       R>750K Ohm                          Y

LOWBATT        Voltage less than 7V,replace the battery

Other standard choice determination of the upper and the lower limit in line with other countries(customized)
Accuracy:+/-10%
Tester dimension:190*138*34MM
The workstation height(adjustable):0.6-1.07M(24"-42")
Power supply:9V alkaline battery
Installation:desktop or suspended

ES46202 Anti-static Shoes Tester
Can simultaneously measure the volume resistivity of the right foot and left foot,LED status indication:HIGH,PASS,or LOW.
Standard set measurement range
                      Static shoes test                       Display

HIGH                 R>100M Ohm                     Red light,beep

PASS                  R>=750K Ohm                    Green light
                         R<=100M Ohm                   Green light

LOW                 R<750K Ohm                       Red light,beep

LOWBATT        Voltage less than 7V,replace the battery

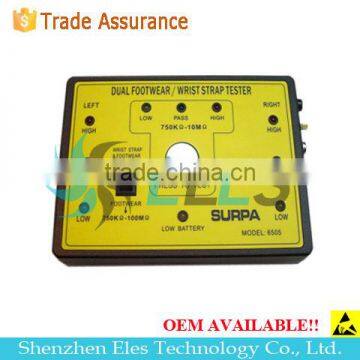

ES46203 Combo Resistance Tester
The products is made according to ISO/CD8782-I standard to detect anti-static shoes / hamstring with wrist strap resistance to ground, and the LED display and alarm sound is essential in the static control measuring instruments, using 9VThe battery-powered, low-voltage security, undervoltage automatic alarm function test height can be adjusted freely.

ES46204 Combo Resistance Tester
Simultaneous measurement of the wrist strap and static shoes / hamstring with: press the button to switch up to "WRIST STRAP & FOOTWEAR" file, to wear a wrist band will plug or the fish folder access socket (fish folder column), press and hold the "PRESS TO TEST "key, above the middle indicates that the
resistance of the wrist strap. The left (LEFT) direct-to-ground resistance, wear shoes is the left foot on the right (RIGHT) indicates the resistance to ground wear shoes for the right foot.
