China manufacturer 15w new 2g11 led lighting

FOB Price

USD $14 - $17 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	128 PCS 3014, Epistar	Warranty(Years)	3
Input Voltage(V)	AC100-240V	Lamp Power(W)	15
Lamp Luminous Flux(lm)	1500	Lamp Luminous Efficiency(lm/w)	100
Color Temperature(CCT)	Other, 3000 to6000K, optional	Working Temperature(℃)	-20, 50
Working Lifetime(Hour)	35000	Lamp Body Material	Aluminum
IP Rating	Other, IP40	Certification	BV, CCC, CE, Energy Star, EMC, FCC, LVD, PSE
Place of Origin	Guangdong, China	Brand Name	Genice
Model Number	Other, GE-G1115

China manufacturer 15w new 2g11 led lighting
1.15w, 417mm,1500lm
2.CE,ROHS
3.Fast delivery
4.3years warranty

China manufacturer 15w new 2g11 led lighting

1. Specifications

	Model	GE-G1115-FR	GE-G1115-CL
A. Electrical Parameters
1	Input Voltage	AC85-265V	AC85-265V
2	Power Consumption	15W	15W
3	Frequency Range	50/60Hz	50/60Hz
4	Pow Factor	> 0.95	> 0.95
5	Power Efficiency	> 85%	> 85%
B. Optical Parameters
7	Luminous Flux	1400Lumens	1600Lumens
8	LED Luminous Efficiency	90-100Lm/W	100-110Lm/W
9	Lamp's Efficiency	>90%	> 90%
10	Color Temperature	(2700-3300K)/(4000-4500k)/(5500-6500K)	(2700-3300K)/(4000-4500k)/(5500-6500K)
11	CRI(Ra)	> 80	>80
12	Viewing Angle	120°	120°
C. Other Parameters
13	Lamp Holder/Base	2G11	2G11
14	Dimension	L417mm	L417mm
15	Housing material	PC + Aluminum	PC + Aluminum
16	N.W.	190g	190g
17	Chip Brand/Light Source	Epistar	Epistar
18	LED Quantity	128 SMD 3014 LEDs	128 SMD 3014 LEDs
19	Life time	>35,000hours	>35,000hours
20	Warranty	3Years	3Years
21	Certificates	CE/ROHS approved, UL pending	CE/ROHS approved, UL pending
D. Energy Saving and Low carbon
22	Replacement	36W Traditional 2g11 Fluorescent tube	36W Traditional 2g11 Fluorescent tube
E. Working Environment
23	Working Temperature	-20°C~50°C	-20°C~50°C
24	Working Humidity	10~90%	10~90%

2.GENICE LED 2G11 LAMP

Model	Dimension	LED Quantity	Power	Luminous Flux		N.W.
Model	Dimension	LED Quantity	Power	FR	CL	N.W.
G1109	225mm	80 SMD 3014 LEDs	9W	900lm	1000lm	150g
G1112	320mm	112 SMD 3014 LEDs	12W	1200lm	1400lm	190g
G1115	410mm	128 SMD 3014 LEDs	15W	1500lm	1600lm	270g
G1118	535mm	160 SMD 3014 LEDs	18W	1800lm	2000lm	330g
G1126	535mm	240 SMD 3014 LEDs	26W	2400lm	2600lm	350g

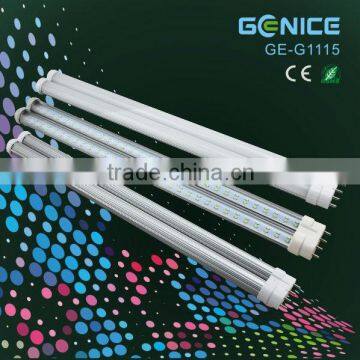

3.Product Photo

4. Illuminance graph

Lux distance Curve

Light Distribution Curve

6.User manual (How to use this lamp)

7. Company appearance
