Wholesale Hot New Products 5mm strip & grid antistatic fabric various colors

Wholesale Hot New Products 5mm strip & grid antistatic fabric various colors

ESD fabric

strap esd fabric

electrostatic fabric

ANTI-STATIC fabric

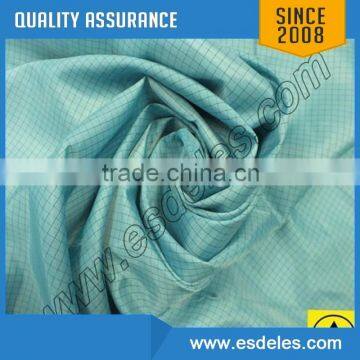

Anti-static cloth is made of conductive fiber from Japan Kanebo belltron9R, there is several styles like 5MM strip, 5MM grid and 2.5MM grid. It's mainly used in the production of dust-proof clothing, anti-static clothing, anti-static mask, anti-static glove, anti-static shoe and shoe cover. The fabric is 1.5m wide, surface resistance 10^6Ω-10^9Ω, available for class 10-100 cleanroom. There are four types, 1)98% polyester and 2% conductive yarn; 2)anti-static TC fabric 63% polyester + 35% cotton + 2% conductive yarn; 3)antistatic TR fabric; 4)antistatic CVC fabric. Different type fabrics adapt to the requirements of different anti-static or cleanroom environment. Widely used in microelectronics, optical electronics, precision instruments, and aerospace which are more sensitive to static electricity and have higher requirements in clearnoom.

Staic dissipative fabric
1.5M wide
Carbon yarn (Conductive yarn)
ESD property lasts over 50 times washing
Customized colors available

Fabric Material Percentage
ES01-ES11,   98% polyester+0% cotton+2% conductive fiber,     5mm strip,                    125g
EG01-ES11,  98% polyester+0% cotton+2% conductive fiber,      5mm grid,                    125g
CG01-06,      63% polyester+35% cotton+2% conductive fiber,   5mm grid,                     125g
CG007,         63% polyester+35% cotton+2% conductive fiber,   4mm strip,                     125g
CG08,           63% polyester+35% cotton+2% conductive fiber,   4mm grid double line,   125g
CG09,           63% polyester+33% cotton+4% conductive fiber,     5mm strip,                   140g
CG10,           63% polyester+33% cotton+42% conductive fiber,     rhomb,knitted,           140g
CG11,           -% polyester+96% cotton+4% conductive fiber,      T-shirt material,            130g
CG12,          98% polyester+0% cotton+2% conductive fiber,      TC material,                  220g

Recommended cleaning process for ESD garments
The carbon filament nylon used in our garments is sensitive to heat, alkali, acids, softeners and bleach. In order to keep the ESD properties of the garments, please follow our recommended instructions:

*Wash in warm water, no more than 40 C(104 F) with liquid laundry detergent, i. e. liquid Tide, lemon liquid detergent, oxydol, and etc.
*In case of severe dirt or grease, stronger liquid detergents can be used if they do not contain any chlorine bleach.
*Do not bleach, do not use alkali, acid or fabric softeners. Do not dry clean.
*Usually no ironing will be needed, as a special additive is used during the finishing process of our woven fabrics. Nevertheless, the garments can be ironed at medium temperature.
