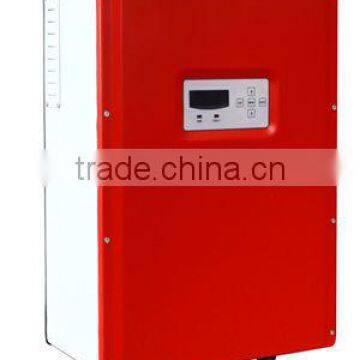

PV On-grid Inverter BNSG2K5D

FOB Price

US$ 600 - 900 / Set

10 Sets(Min. Order)

Port Qingdao

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	BOS
Model Number	BNSG2K5D	Specification	Normal
Application	Home	Output Voltage (V)	220V/230V/240V
Load Power (W)	2.5K	Solar Power (W)	2.5K
Work Time (h)	12h

Product Description

Specifications

PV on-grid inverter 1-5KW with VDE-AR-N 4105 certificate, high conversion efficiency,outdoor use ,the protection degree is IP65

Features:

PV on-grid inverter ,BNSG2K5D with the VDE-AR-N 4105 certificate ,is the most widely used inverter in home PV power station. With whole closed structure, can be placed directly under the PV cell components, and is suitable for outdoor installation and running. Good design, high conversion efficiency, and natural cooling to ensure that output higher power under bad environment. Besides the protection degree is IP 65

Technical parameters:

Type	BNSG2K5D
Max. DC input power	2.8KWp
Max. DC input voltage	430VDC
MPPT range	200-400Vdc
Max.input approach	2
Battery board Joint type	In-line waterproof terminal
Max.array input current	18.7A
Nominal AC output power	2.5KW
Nominal AC voltage	180~265VAC
Nominal AC frequency	50Hz/60Hz
Power factor	≥0.99
THD of AC current	<4%(nominal power)
Max. Efficiency	94%
Euro efficiency	92%
Isolation	Low frequency transformer isolation
Internal power consumption an night	<10W
Comm. interfaces	RS485/RS232/GPRS/Ethernet
electric insulation performance	1500Vac,1minute
Operating Temp.	-20~+40°C
Relative humidity	0~90% no condensing
Protection	Input short voltage,over voltage,connecting contrary,output over current,short circuit,over heat etc.
Cooling method	Natural cooling
Noise(horizontal distance1meter)	<40dB
Protection degree	IP65
Size(WLH mm)	380490255
Weight(kg)	44
