High accurancy Best price Portable Ultrasonic Flaw Detector

Overview

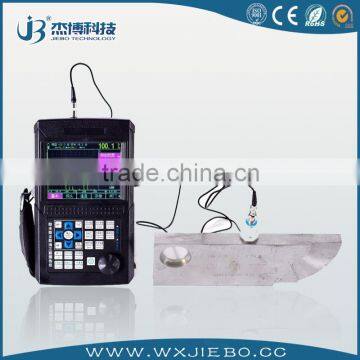

 SUB100 Portable Digital Ultrasonic Flaw Detector is a economical and practical model . Except for the differences of its measuring range, working frequency and transmitted pulse parameter, the other performances are the same as SUB140.

Based on ultrasonic pulse reflection testing principle, SUB100 controls all testing process by the mini-processor. And it has low power design and can do charge with two models such as online charging and offline charging. And it can work continuously about 8 hours.With large capacity, digital multi-color TFT LCD, original imported stable IC, small size, light weight, stable performance and favorable price, SUB100 is one of our company’s high promoted super cost performance and economically ultrasonic flaw detector.

KEY FEATURES

With English display, master-slave menu, shortcut key and digital swiftly knob, it’s designed with leading technology and can be used very conveniently.

With digital color 5.7inch TFT LCD display, it can choose the background colour and wave color according to the environment. And the LCD brightness also can be set freely by yourself.

Designed with high performancesecurity-guarantee battery module, it’s easy for disassembly and assembly. And it can charge independent with offline. And the large capacity and high performance Lithium-ion battery module make the instrument’ contentiously working time to above 8 hours,

 With small size and light weight, the instrument can be hold by one hand. It’s durable in use and lead industry trend.

 Range: (0 ~ 6000) mm
Bandwidth: (0.2 ~ 15) MHz
Material Velocity: (1000 ~ 9999) m / s
Dynamic Range: ≥ 32dB
Vertical linear error: ≤ 3%
Horizontal linear error: ≤ 0.2%
Resolution:> 40dB (5P14)
Sensitivity Leavings: 60dB (flat-bottomed deep hole 200mm 2)
Rejection: (0 to 80)% Linear
Noise level: ≤ 10%
Power supply: DC 9V; lithium batteries work for 4 to 8 hours or more
Ambient temperature: (-20 ~ 50) ℃
Relative Humidity: (20 ~ 95)% RH
