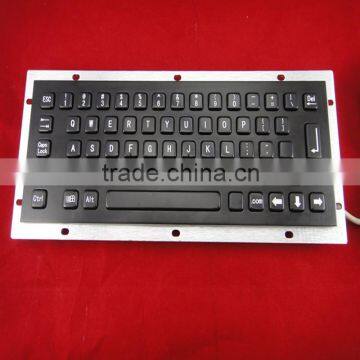

Anodized black mini metal keyboard

Anodized black mini metal keyboard

Low Price Metal Membrane Keyboard

1) Vandal-resistant metal keyboard with 64 keys and integrated trackball, front panel mount
2) Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel;
3) Rugged keyboard,specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places.
4) Built from stainless steel, high vandal-proof.
5) Dust-proof and liquid-proof, meet IP65 requirement
6) PS/2 or USB interface, easy to plug into computers directly
7) Customizable

Specifications:

Material

- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Key cap: Protruding full travel key(2.0mm) with etched or laser engraved graphics
- Trackball: Stainless steel trackball (Dia: 38mm)

Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
  Emission: EN 50081-1
  Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE, UL compliant

Environmental Characteristics

- Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6

Mechanical Data

- Actuation force for key 14x14 mm: 2N+/-0.1
- Actuation force for key 14x28 mm: 4N+/-0.1
- Key travel: 2.0mm
- Key to key: 5.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4

Operation system

- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Reliability

- MTBF >50000H

- MTTR <30min

Weight and dimension

- Weight: 1.80kg
- Dimension: 400.00 x 124.00 x 32.20mm

Company Introduction

Our company is a professional metal parts manufacturer in China, and it is established in 2006.  It provides  equipment for many financial companies in China and other countries. We are specially good at  stamping and punching stainless steel and aluminum parts, and has a completerly process of manufacture including product design, die sinking ,  manufacture and delivery. we are professional supplier for high quality metal parts at competitive price, and our products are sold to Europe, India, Africa, and North America.
