Custom metal keys keyboard with function keys and numeric keys

Custom metal keys keyboard with function keys and numeric keys

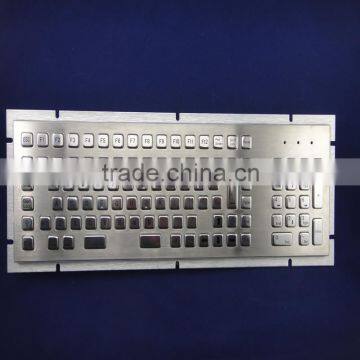

64 Keys vandal proof IP65 industrial stainless steel keyboard with integrated touchpad and rear plating mounting solution

lThis Keyboard is mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas,

lIdeal for applications in the harshest conditions,it meets NEMA 4, 4X and IP 65 specifications, making them vandal proof, resistant to dust, dirt, water and corrosive liquids.

lPS/2 or USB connector is available.

lAll international language lay-out are optional.

lIt is compatible to WINDOWS98/ME/2000/2003/XP/Vista/ Linux, Unix, Mac OSX

   Dimension: 400*124mm(front panel)

MECHANICAL DATA

• keys: 64 keys, super quality SUS304 brushed stainless steel
• Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
• Stroke travel: 2.0mm
• Switch life: more than 1 million of per key
• Front panel: made of 1.5mm thickness super quality brushed stainless steel
• Back Plate:3.0mm thickness brushed & silver oxidized aluminium
• Customized layout is available
• G.W.:2.0 KGs

ELECTRICAL DATA

• Supply Voltage:5.0V DC±5%
• Current Rating: appr. 30mA
• EMC Standard: It is compliance with the council EMC directive 2004/108/EC
• EN55022: 2006+A2:2010
• EN55024: 1998+A1:2001+A2:2003
• Lifespan > 5 years

ENVIRONMENTAL ADAPTABILITY

• Operating temperature:-20°C to +60°C
• Storage temperature: -30°C to +70°C
• Operating RH: 20-95%
• Atmospheric pressure: 60-106Kpa.

RELIABILITY

• RoHS Compliant, CE and FCC, ESD
• Protection Level: IP65(front panel)
• Vandal resistant: IK10
• Key Lifespan >10 million actuations
• MTBF >5,0000H
• MTTR <30min

Basic Instruction
1.Support WIN98WIN2000WIN XP System
ply with ISO/IEC 9995GB/T14081 standard
3.Keyboard made of high quality stainless steel
4. Dustproof, waterproof, shake-proof and vandal proof
