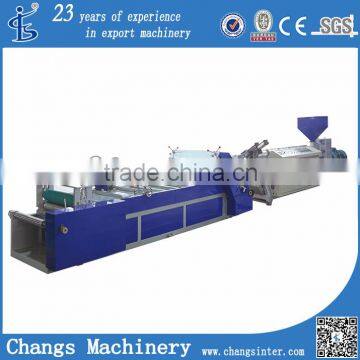

SJDSP-90 Plastic Sheet Extruder-4
- 30 Set / Sets per Month
- Ningbo
- T/T Credit Card
You May Like
-
SJDSM-M Drink Straw Making Machine
-
SBCP-450 Full automatic plastic cup packing machine with counting
-
SBCL series plastic box making machine
-
SDPZ-320 Multi-functional forming and packaging machine
-
YZ-S1-5G 1 cavity semi automatic 5 gallon bottle blower
-
YZ-S1-I1 2 cavity 1 heater semi automatic Tic 5 gallon bottle blower
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PP | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | Changs | Model Number | SJDSP-90 | |
| Voltage | 380V | Power(W) | 80kw | |
| Dimension(L*W*H) | 10500*1800*2200mm | Weight | 6000kg | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Technical parameters:
Model | SJDSP-90 | SJDSP-105 | SJDSP-120 |
Material used | PP / PS / PE | ||
Sheet width | 650mm | 650mm | 1400mm |
Sheet thickness | 0.3-2.0mm | 0.3-2.0mm | 0.3-2.0mm |
Screw diameter | 90mm | 105mm | 120mm |
Output | 100kg/h | 125kg/h | 160kg/h |
Motor power | 30kw | 37kw | 55kw |
Total power | 80kw | 92kw | 100kw |
Weight | 5000kg | 6000kg | 11000kg |
Power | 380V/3Ph/4L/50Hz | ||
Dimension | 10500×3200×2700mm | 10500×3200×2700mm | 12000×3800×2700mm |
SJDSP plastic Sheet Extruder is designed and manufactured by absorbing domestic and international advanced technology.
it is applicable in producing various kinds of plastic sheets of PP,PE and PS which are used for making drinking cups , icecream cups,jelly cups and other packaging vessel as well .This machine is charaterized by following features:
This machine set is the combination of such main parts as extruder ,calender ,winder ,and electric control console.
The screw and the cylinder are made of high quality alloy steel (38CrMoAlA)with optimum hardness,strong corrosion resistance and long service lifetime after nitrogen treatment.
The flow channel in die head is of coat-hanger design and it ensures the even thickness and the smooth surface of the sheets. The circular wate inside the calender brings perfect cooling Effect, mesh changer and the cylinder are separately controlled. SJDSP Plastic sheet extruder is one of the main products of our company, it has passed the CE certification.
Sample:
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
