Home > Products > New Products > Washing-filling-capping 3 in 1 Machine

Washing-filling-capping 3 in 1 Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	CQ
Model Number	QGF

Product Description

Specifications

1,washing-filling-capping 3 in 1 machine
2,lowest price
3.fullauto-matic
4.CE,ISO9001
5,best aftersale service

small bottle water filling machine/bottled water production line

our enterprise not only trade , but also make friends , why not to contact us for more informations , we can give you the highest quality machine and best service , we just need friends and make our brand famous , we try to give you the lowest price ,but also we promise the quality , so contant us

with no hesitate

Specifications

1.This filing machine 3-in-1unit for water integrated the function of washing filling and capping .
2.Ideal choice for customer

Filling Machine Water(3-in-1),drinking water filling machine,filling machine , filling machinery

Product Description

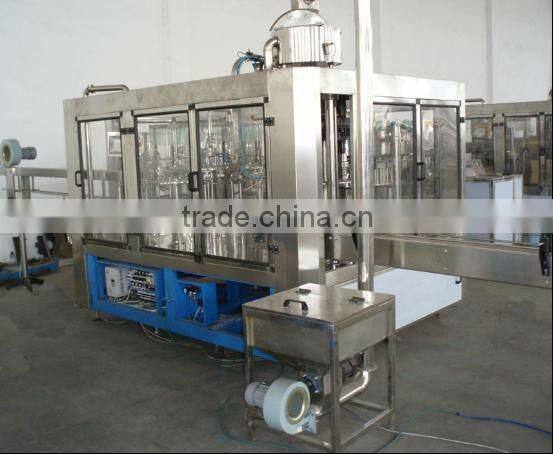

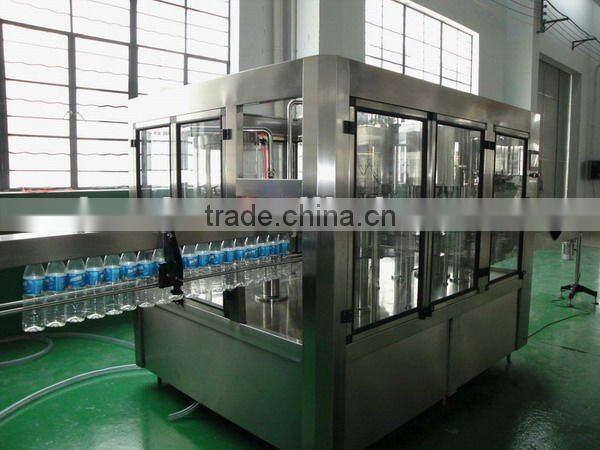

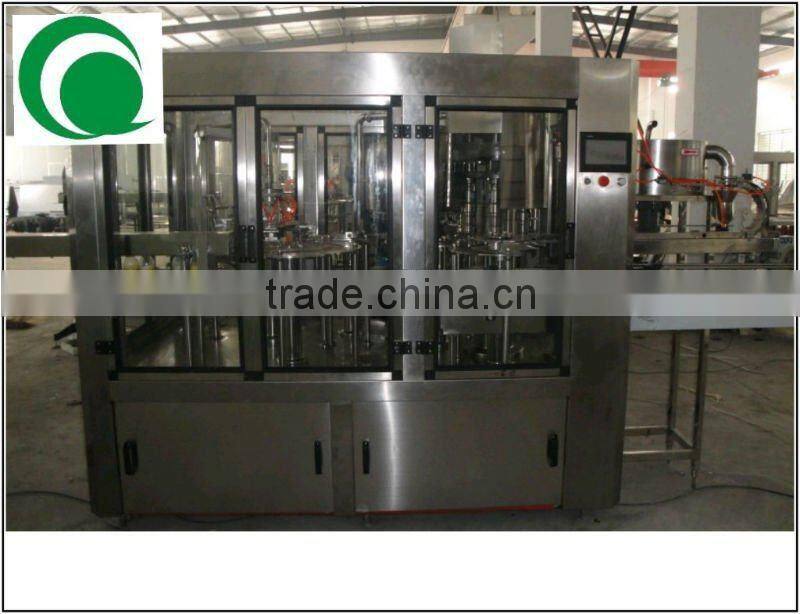

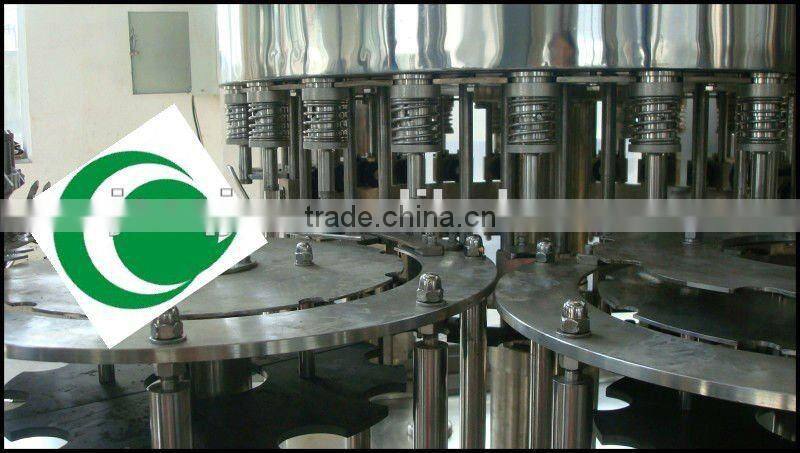

CGF Series Full-Automatic Washing, Filling and Capping 3 in 1 Machinery.

This series of machinery are used for packing non-carbonated drinks in PET bottles, such as pure water, mineral water.

The washing, filling and capping 3 kinds of jobs will be finished just by this one machine. It is very convenient to change diverse sizes of bottles by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology. Advanced programmable PLC is equipped to control the main machine. Main electronic components are all from famous international enterprises. All spare parts that may touch with water are made from high-quality stainless steel.

Model:	CM16/12/6	CM18/18/6	CM24/24/8	CM32/32/12	CM40/40/12	CM48/48/12
Production Capacity:500ml(B/h)	4000	6000	10000	14000	17000	20000
Suitable Bottle Standard:(mm)	150-300	150-340	150-340	150-340	150-340	150-340
Suitable Cap Standard:(mm)	φ50-φ110
Filling Pressure:(Mpa)	0.2-0.3
Installed Capacity:(L)	3.13	3.84	3.84	5.6	6.3	7.3
Filling Temperature:	Room Temperature	Room Temperature	Room Temperature	Room Temperature	Room Temperature	Room Temperature
Overall Size:L×W×H(mm)	2400×1670 ×2350	2470×1970 ×2350	2865×2170 ×2350	3700×2570 ×2350	3800×2950 ×2400	4500×3400 ×2400
Total Weight:(kg)	2500	3000	4000	5000	6000

Alao we can
