Home > Products > Gift Box Making Machinery & Folder Gluer > SFG automatic coffee sleeve folder gluer machine

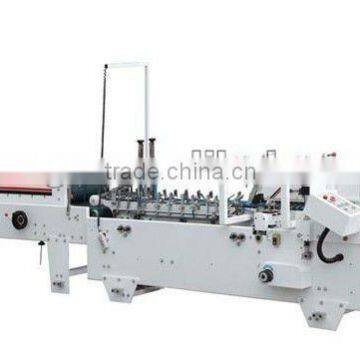

SFG automatic coffee sleeve folder gluer machine
- 20 Set / Sets per Month
- T/T
You May Like
Product Details
| Product Type | Other, Folder Gluer | Processing Type | Other, Folder Gluer | |
| Place of Origin | Zhejiang, China | Model Number | SFG |
Product Description
Specifications
automatic coffee sleeve folder gluer machineSFG model automatic folder gluer machine belongs to economic type product, with br
automatic coffee sleeve folder gluer machine
SFG model automatic folder gluer machine belongs to economic type product, with broad usage and flexible debug.It can paste various boxes, such as the medicine box cosmetics box and the samller box such as match boxes etc.The min widest can make 70MM open size of the boxes.
Major technical index
SHH-800(wide belt)
Model | (Amax) | (Amin) | (Bmax) | (Bmin) | (Cmin) | (Dmin) | (Fmin) |
SHH-800 | 700mm | 70mm | 520mm | 110mm | 8mm | 70mm | 51mm |
SFG-1200(wide belt)
Model | (Amax) | (Amin) | (Bmax) | (Bmin) | (Cmin) | (Dmin) | (Fmin) |
SHH-1200 | 700mm | 70mm | 790mm | 110mm | 8mm | 70mm | 51mm |
SFG-800(narrow belt)
Model | (Amax) | (Amin) | (Bmax) | (Bmin) | (Cmin) | (Dmin) | (Fmin) |
SHH-800 | 700mm | 70mm | 520mm | 70mm | 8mm | 70mm | 35mm |
Characteristics
Linear velocity | 0~200m/min |
Suitable paper quality | 220~800g/m2 cardpaper |
Paste box basic form | One-side edge pastes, two-side edge pastes. |
Feeding way | Automatically and continuously feeding |
Adhesive | Solute type |
Needed power | AC220V 3.5KW |
Weight | 1500KG |
Overall Size | 5300mmx820(1250)mmx1300mm |
The scope of Count | 0~999999 |
