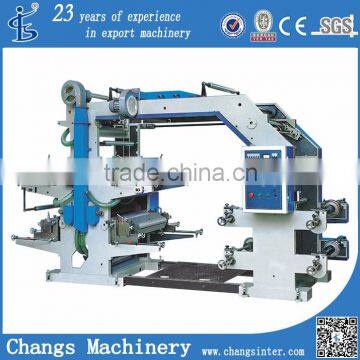

YT Series Fully Automatic Nonwoven Roll Printer-2
- SHANGHAI
- T/T Credit Card
You May Like
-
SGS Garments Label/Sticker Printing Machine
-
SGS Garments Label/Sticker Printer/Printing Machine
-
SGS Series Garments Label Printer/ Label Machine for Garments
-
SGS Series Garments Label Printer/ Label Machine for Clothes Quality Choice
-
ZBS-450 Multi Colors Plastic Bags Printing Machine
-
ZBS-450 Multi-Color LABEL (LOGO) FLEXO PRINTING MACHINE Quality Choice
Product Details
| Condition | New | Plate Type | Other, FL] | |
| Place of Origin | Zhejiang, China | Brand Name | YIZHANG | |
| Model Number | YT series | Usage | Label Printer | |
| Automatic Grade | Automatic | Gross Power | 10 | |
| Dimensions(L*W*H) | 2(L)x1.1(W)x2.6(H)(m) | Certification | CE |
Product Description
Main Technical Variables:
Model of Machine | YT-4600 | YT-4800 | YT-41000 |
Max. Width of Printing Material | 600mm | 800mm | 1000mm |
Max. Printing With | 560mm | 760mm | 960mm |
Length Range of Printed Product | 191-914mm | 191-914mm | 191-914mm |
Max. Diameter of Roll Material | φ450mm | φ450mm | φ450mm |
Printing Speed | 5~0m/min | 5~0m/min | 5~0m/min |
Thickness of plate(Including Two-sides Glue Paper) | 2.38mm | 2.38mm | 2.38mm |
Total Power | 10.87kw | 12.5kw | 14.37kw |
Weight of Machine | 3000kg | 3500kg | 4000kg |
Overall Dimensions | 4200×1600×2400mm | 4200×1800×2400mm | 4200×2000×2400mm |
Performance:
Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
9. Magnetic powder brake for unwinding tension control, magnetic powder clutch for rewinding tension control.
10. With double unwinding &rewinding shaft.
Sample:
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
2.Certificate
3. Cooperative partner
