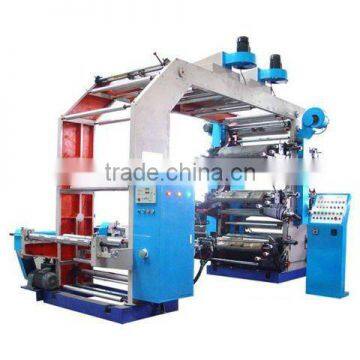

GS-800 series nonwoven bag printer in different colors
- SHANGHAI
- T/T Credit Card
You May Like
-
YT Series paper roll printing machine by different colors
-
ZBS series fully automatic self adhesive printer
-
ZBS series fully automatic UV flexographic printer
-
YT series fully automatic flexo printing press
-
ZBS series fully automatic flexo printing press
-
ZBS series la impresora de flexografia para adhesiva
Product Details
| Condition | New | Plate Type | Other, flexo printing machine | |
| Place of Origin | Zhejiang, China | Brand Name | yizhan | |
| Model Number | GS-800 series | Usage | Label Printer | |
| Automatic Grade | Automatic | Gross Power | 15 | |
| Dimensions(L*W*H) | 2(L)x1.1(W)x2.6(H)(m) |
Product Description
Specifications
nonwoven bag printerMechanical Speed 90M/Min
Print Speed 70M/Min
Features:
nonwoven bag printer
1, shape innovative, institutional rational, advanced technology, simple operation, stable overprint, print quality, print speed, very low reject rate, long service life, easy maintenance
2, using Taiwan's main line of motors and motor Mexico, Japan, frequency control, saving electricity, running small fluctuation
3, down version of automatic cut-off line ink motor, automatic start-line version of ink from device
4, using the Japanese SNK imported bearings (one-way bearings used in Germany)
5, starting with the fall edition version of the system or using YUKEN SMC pneumatic system
6, at the end of a special steel roller using the German process, and after special treatment, and plating 10 wire-thick protective layer of hard chromium, beating the 0.01mm below
7, with separate oven and the cold wind bellows shape, can effectively prevent the adhesion of printing ink after
8, Unwinding from Taiwan automatic gas control system of hydraulic correcting knitting machine
9 Unwinding and Winding with Japan's Mitsubishi powder, Taiwan automatic constant tension control system
Print Width | 600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm | 1800mm | 2000mm | ||
Print Color | 6 Color (C:6+0;5+1;4+2;3+3) | |||||||||
Print Length | 7.5″-40″/7.5″-50″/7.5″-60″/7.5″-70″/7.5″-80″ | |||||||||
Mode of plate load/unload | Hydraulic/Pneumatic/Manual | |||||||||
Mechanical Speed | 90M/Min | |||||||||
Print Speed | 70M/Min | |||||||||
Anilox | Metal: 10DK-120DK(Germany) | |||||||||
Registration | Vertical:±0.25mm Horizontal:±0.25mm | |||||||||
Rewind/unwind Diameter | ø 600mm | |||||||||
Main Motor | 3.7KW | 3.7KW | 5.5KW | 5.5KW | 7.5KW | 7.5KW | 11KW | 11KW | ||
Unwinding Motor | 1.1 KW | 1.5 KW | 2.2 KW | 3.0 KW | ||||||
Rewinding Motor | 1.5 KW | 2.2 KW | 3.0 KW | 3.7KW | ||||||
Heat | 14KW | 16KW | 20KW | 22KW | 24KW | 26KW | 28KW | 30KW | ||
Heat Fan | 1.5KW×2 | 1.1KW×3 | 1.1KW×3 | 1.1KW×3 | 1.5KW×3 | 1.5Kw×3 | 2.2KW×3 | 2.2KW×3 | ||
Cool Fan | 0.75 KW | 0.75 KW | 1.1 KW | 1.1KW | 1.1 KW | 1.5KW | 1.5KW | 1.5KW | ||
Ink Transfer Motor | 750W | 750W | 750W | 750W | 750W | 750W | 750W | 750W | ||
Main Inverter | Panasonic | |||||||||
Bearing | Japan(NSK) | |||||||||
One-direction Bearing | ASNU (Germany) | |||||||||
Net Weight | 4500Kg | 4750Kg | 5600Kg | 5250 Kg | 5500Kg | 5750Kg | 6000Kg | 6300 Kg | ||
Total Power | 25KW | 27KW | 34KW | 37KW | 43KW | 47KW | 55KW | 58KW | ||
Size | 4.8m× | 4.8m× | 4.8m× | 4.8m× | 4.8m× | 4.8m× | 4.8m× | 4.8m× | ||
