Home > Products > Die Cutting Creasing & Slitting Machine > JMQ-930 paper cup printing die cutting machine

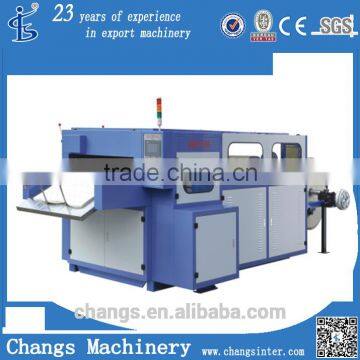

JMQ-930 paper cup printing die cutting machine
- 20 Set / Sets per Month
- NINGBO / SHANGHAI
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Die-cutting Machine | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | changs | Model Number | JMQ930 | |
| Voltage | 380V50HZ | Power(W) | 11KW | |
| Dimension(L*W*H) | 4840mmx2180mmx1880mm | Weight | 5500kg | |
| Certification | SGS | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic paper cup die cutting machine
Description
JMQ 930 high Speed Automatic Reel Die-cutting Machine is the professional equipment which uses for cutting various kind of popular paper and PE coated paper,be applicable to printing,packaging,paper cup and other to the die-cutting area,cutting lengh can be setted in touch-screen, it is convension and precise . And it can die-cut the blank paper and printed paper .Clutch is pneumatic clutch ,be fast and reliable.
Technical Parameter:
Model | JMQ-930 |
Die cut speed | 60~110 Times/Min |
Max pressure | 1200KN |
Length of cutting | <25m |
Diameter of roll paper | <1.5m |
Paper thickness | 180-350gsm |
Paper Width | 360-900mm |
Max die cut size | 580x900mm |
Paper feeding speed | >35m/min |
Air compressor | 1.0m3/min,(0.8MPa) |
Length of roller | 1000mm |
Main motor Power | 7.5KW |
Total power | 11KW |
Dimension(LxWxH) | 4840mmx2180mmx1880mm |
Weight | 5500Kg |
Sample
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
