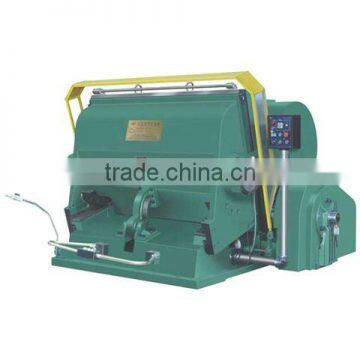

ML series flatbed die cutter
- 30 Set / Sets per Month
- T/T
You May Like
Product Details
| Condition | New | Packaging Material | Paper | |
| Automatic Grade | Semi-Automatic | |||
| Model Number | ML-2000 |
Product Description
Specifications
flatbed die cutterThe die cutting and creasing machines are special equipments for die cutting and creasing a wi
flatbed die cutter
Application
RQ serial die cutting & creasing machines special equipments of die cutting and creasing a wide range of materials, such as cardboard, corrugated board, plastic and leather. They are applicable to the fields of printing, packaging, decoration and plastic industries. RQ machines have been acceptable for the customers from home and abroad, due to their outstanding features, high quality and good service.
* Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-frietion and shake reducing. |
* Flywheel is with big moment of force and large pressure. |
* High strength due to one piece casting by using top-ranking material for machine body. |
* Single plate electromagnetic clutch is sensitive and reliable. |
* With functions of single, continuous and opening dweel operation, dwell range is adjustable. |
* Operating position is reasonably arranged, moving-bed can be opened to its optimum. |
* Central lubrication system guarantees fine lubrication and reduce friction. * Safety system is reliable. |
Technical Parameters:
Model | Max.Rule Area (mm) | Working speed(strokes/min) | Max Rule Length | Motor power(kw) | Weight (kg) | Overall Deminsion(L*W*H) (mm) |
ML750 | 750*520 | 25±2 | <25m | 2.2 | 1900 | 1260*1400*1280 |
ML930 | 930*670 | 23±2 | <25m | 5 | 3000 | 1670*13701630 |
ML1040 | 1040*720 | 21±2 | <30m | 5.5 | 4000 | 1800*1680*1600 |
ML1100 | 1100*800 | 20±2 | <30m | 5.5 | 4500 | 1900*1780*1700 |
ML1200 | 1200*850 | 18±2 | <38m | 7.5 | 6500 | 2000*2140*1940 |
ML1300 | 1300*920 | 18±2 | <38m | 7.5 | 6500 | 2000*2140*1940 |
ML1400 | 1400*1000 | 17±2 | <38m | 7.5 | 7200 | 2010*2400*1950 |
ML1500 | 1500*1100 | 17±2 | <40m | 7.5 | 8500 | 2010*2480*1960 |
ML1600 | 1600*1250 | 16±2 | <43m | 11 | 11800 | 2170*2560*2080 |
ML1700 | 1700*1280 | 16±2 | <45m | 11 | 12500 | 2170*2560*2100 |
ML1800 | 1800*1280 | 16±2 | <50m | 11 | 14200 | 2180*2760*2100 |
ML2000 | 2000*1400 | 16±2 | <58m | 15 | 16500 | 2270*3100*2150 |
|
|
|
|
|
|
|
