Mineral Water Washin filling and capping

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Beverage
Packaging Type	Bottles	Packaging Material	Plastic
Automatic Grade	Automatic	Driven Type	Electric
Voltage	220V	Power	3KW
Place of Origin	Jiangsu, China	Brand Name	CQ
Model Number	CGF18-18-6 PET Bottled Filling Machine/Line	Weight	3000KG
Dimension(LWH)	2200X1500X2700MM	Certification	CE ISO
After-sales Service Provided	Engineers available to service machinery overseas

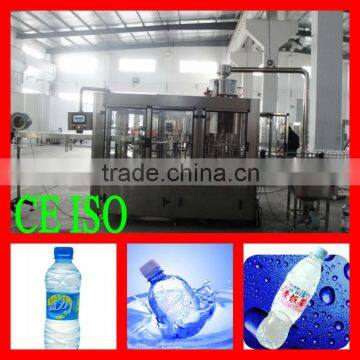

Equipment for bottling water
PET bottle/Glass bottle
Volume:200-2000ml,
10years experience
CE&ISO

Equipment for bottling water

Characteristic:

1.This beverage machine carres out bottle washing filling and capping into one machine.

2.The whole machine design is reasonable, appearance is beautiful, maintenance is convenient.

3.It adopts hanging type conveying bottle structure to make bottle size changing more convenient, faster and easier.

4.The main machine adopts advanced PLC control technology. The key electric components adopt international famous products.

Technical parameter:

Model	CGF16126	CGF18186	CGF24248	CGF32328	CGF404012
Heads of washing, filling, sealing	16-12-6	18-18-6	24-24-8	32-32-8	40-40-12
Production capacity	3000-4000BPH	5000-7000	8000-12000	12000-15000	16000-20000
Spraying pressure	0.2-0.25Mpa	0.2-0.25Mpa	0.2-0.25Mpa ³	0.2-0.25Mpa	0.2-0.25Mpa
Motor power	2.2kw	2.5kw	3kw	5.5kw	7.5kw
Stainless steel	SS304	SS304	SS304	SS304	SS304
PLC	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Circuit contactor	Siemens	Siemens	Siemens	Siemens	Siemens
Overall dimension mm	240016502500	250018002500	310023002800	380028002900	460028002900
Weight	2500kg	3500kg	4500kg	6500kg	8500kg
