BSWNI-6023 Wireless 433MHZ 1D & 2D Wireless Barcode Scanner
- 1000 Piece / Pieces per Month
- Shenzhen
- Credit Card PayPal
You May Like
-
ICRW02 With High Performance Rfid Mini Card Long Range Rfid Reader
-
ICRW02 Best Price Rfid Tag With Led Light Rfid Jelly Tag
-
TP-8016 3" Thermal Pos Printer POS Economic
-
TP-8012WA WIFI Cheap Pos Receipt Printers High Admiration WIFI Thermal Receipt Printer Paper Roll
-
BS-B4 Nice Design Handheld Barcode Scanner With Many Advantage Charateristics
-
TP-B1 optional kitchen printer portable mobile printer
Product Details
Place of Origin | Guangdong, China | Brand Name | CENTURY HC | |
Model Number | BSWNI-6023 |
Product Description

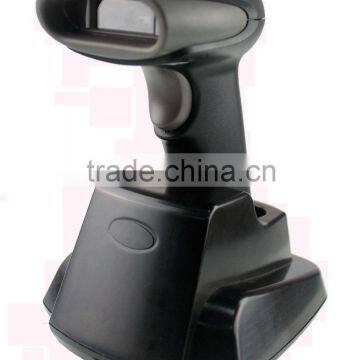

433MHZ 1D & 2D Wireless Barcode Scanner
(Model Number: BSWNI-6023 )
Features
- 1. Captures virtually all 1D and 2D bar codes as well as still images and video, more flexible for different application and solution
- 2. Powerful 624 Mhz processor, greatly improve work efficiency
- 3. Fast sensor shutter speed supports 60 fps to capture image, exceptional capture rate and motion tolerance
- 4. Multi-directional to capture all the data, unique aiming pattern, accurate scanning even in bright sunlight
- 5. Diversity of interface, support RS232, USB and RS485(customized)
- 6. Reserved installation mounting holes, Easily to integrate into any device or install on the cradle holder
- 7. Achieving one-to-many communications(one PC/PLC host to many barcode scanners),good for applications as multiple barcode scanners linked to the same network
- 8. Creative user defined barcode technology),user defined barcode binding with unique ID barcode scanner
Major Functions
Customized user ID with easily ON/OFF features.
Data upload without delay feature
Inventory mode: uploading command, barcode amount display command, barcode clearance command.(storaged data can upload repeatly.)
User defined hibernation time
Application and solution
Clothing, retail chain store, warehouse management, e-business, commercial retail, logistics express and file management, etc.
Specification:
Operating indicators | Visual:2 LEDs (Red, Blue) Non-visual: Buzzer |
Communications | RF433 |
Sensor resolution | 752*480pixels |
Light source | 625nm LEDs |
Aiming light | 617nm LEDs |
Scan method | CMOS array sensor |
Battery capacity | 2200mAh |
Fixed focus distance | 39°(H)x25°(V) |
Motion capability | <= 63.5cm/25in/s |
Scan rate | Up to 60 fps |
Scan reading angle | Yaw:±60° or greater |
Min. resolution, C39 at PCS 0.9) | 5mil (0.127mm) |
Min.print contrast | Minimum 25% minimum reflective difference |
Image file formats | BMP,TIFF and JPEG |
Voltage | 5 VDC±10% @260mA |
Current consumption | 150mA (typical use), max.250mA |
Temperature | 0°C to 40°C (operation), |
Humidity | 5% to 95% , non-condensing |
Ambient light immunity | 86,000 lux (direct sunlight), 1600lux (Indoor light) |
Drop test | 1.8 m (6 ft) drop onto concrete surface |
Protection rate | IP54 |
MBTF | 53,310hours |
Dimensions | Scanner:162 x 66 x 82 mm(d x w x h) |
Weight body | Scanner: 178.6g/ 6.3 oz (ex. cable) |
Case | PC, Black |
Product Compliance | CE, FCC, IEC 60825-1 Class 2, GB7247.1-2001 |
Enclosed items | Cable(USB,RS232),User Guide, DC power supply (RS232) |
1D | UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat |
2D | PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, Maxicode, QR Code, MicroQR, Aztec |
Shipping:
1. Air, Sea, Express(DHL, FedEx, UPS, EMS, TNT and so on)
2. EXPRESS: around 3-7 working days to arrive
3. INTERNATIONAL AIR Way: usually around 2-4 days to arrive, will also depend on which destination port
4. By sea: depend on which destination port
Payment:
1. T/T
2. Western Union
3. PayPal
4. Escrow
5. Money Gram
FAQ:
. OEM Production:
OEM your logo, MOQ is 300pcs with OEM charge free. If your order less than 300pcs, you can also pay OEM charge to make your logo. Exact cost depends on your requirements.
OEM packing, MOQ is 1000pcs.
