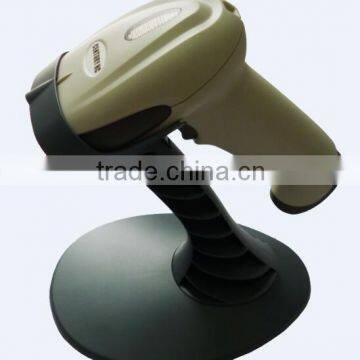

BSWNL-6004 Wireless Bluetooth 1D Barcode Laser Scanner

High performance 32 bits CPU, excellent performance in decoding and error correcting capacity

Auto frequency hopping, high anti-interference capability

250K high wireless transmission rate

10m effective transmission distance

Independent machine ID makes each scanner have unique ID, which can make sure there is no crosstalk even many scanners work in the same time

User defined ID can easily find out data source

Easy pairing. One time pairing for lifetime use. Repeat pairing is allowable.

Simple inventory mode can store 20000 barcode message maximum(customized if over 500)

Enter hibernation automatically with less than 10UA current consumption, which greatly extends the stand-by time of battery.

Long-last time high-capacity battery chargeable with standard USB interface, compatible with any PC.

Safe charging circuit design to guarantee charging safety

Major Functions

Customized user ID with easily ON/OFF features.

data upload without delay feature

Inventory mode: uploading command, barcode amount display command, barcode clearance command.(storage data can upload repeatly.)

user defined hibernation time

Basic Product Specifications

Operating indicators

Visual

1 LED(Blue)

Non-visual

Buzzer

Communication

Bluetooth class 2.0 version+ EDR

Power

Voltage requirement

5V± 10%

Current consumption

85mA (typical use), max. 150mA

Barcode scanner Optics

Light source

650 nm visible laser diode

Scan method

Bi-directional scanning

Scan rate

100 scans/sec

Trigger mode

Manual, multiple read, continuous read, auto-trigger, serial software trigger

Reading pitch angle

-50 to 0°, 0 to +50°(pitch),
-65 to 0°, 0 to +65°(skew),
-35 to 0°, 0 to +35°(tilt).

Curvature

R>15 mm (EAN8), R>20 mm (EAN13)

Min. resolution

PCS 0.9: 0.101 mm / 4 mil, Min. PCS value: 0.35

Durability

Temperature

-20°to 65°C / -4°to 149°F(operation) ,
- 30°to 70°C / - 22°to 158°F(storage)

Humidity

20-85%(operation), 20- 90%(storage)

Ambient light immunity

Fluorescent 3000 lx max, Direct sun 50,000 lx max, Incandescent 3000 lx max

Drop test

1.5 m / 5 ft drop onto concrete surface

Protection rate

IP 54

Physical

Dimensions

90.5 x 69.8 x 160 mm/ 3.56 x 2.75 x 6.30 in (d x w x h)

Weight body

146g/ 5.15 oz (excl. cable)

Case

PC, Black or Grey

Regulatory & Safety

Product compliance

IEC 60825,UL 60950, EN/IEC 60950,FCC Part 15 Class B, EN 55024/CISPR 22, AS 3548, VCCI, RoHS Compliant,GB7247.1-2001

Enclosed items

Cable(USB),User Guide

Supported Symbologies

Barcode(1D):EAN13,EAN8,UPC-A,UPC-E, CODABAR(NW-7),
CODE39,CODE93,INTERLEAVED_2OF5,STANDARD_2OF5, MATRIX_2OF5,CODE128, EAN128(GS1-128),CODE11,CHINESE_POST

Depth of field

PCS 0.9 Code 39
70 - 650 mm / 2.76 - 25.59 in (1.0 mm / 39 mil),
50 - 420 mm / 1.97 - 16.54 in (0.5 mm / 20 mil),
50 - 260 mm / 1.97 - 10.24 in (0.25 mm / 10 mil),
50 - 150 mm / 1.97 - 5.91 in (0.15 mm / 6 mil),
60- 120 mm / 2.36 - 4.72 in (0.127 mm / 5 mil)
50- 110 mm / 1.97 - 4.33 in (0.101 mm / 4 mil)
