Home > Products > More Products > VFD220E OEM Production Custom Lcd Display Module Custom 7 Segment Led Display

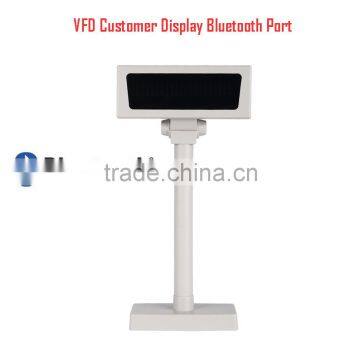

VFD220E OEM Production Custom Lcd Display Module Custom 7 Segment Led Display
Negotiable
/ Piece
10 Pieces(Min.Order)
- 500 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
VFD220E Work Effcient 120 Characters Lcd Customer Display 120 Characters Customer Lcd Display
-
VFD220E High Security Pos Lcd Customer Display Custom Transparent Lcd Display
-
VFD220E Professional Supplier 120 Characters Customer Lcd Display 8 Digitals Customer Pole
-
VFD220E Work Effcient Custom Transparent Lcd Display Pos Vfd Customer Display
-
VFD220E Great Features Custom Led Display Screen Custom Lcd Display Module
-
TP-5802 Widely Application Pos Thermal Receipt Printer Dot Matrix Printer Parts With Name Pos Fiscal Printer
Product Details
| Place of Origin | Guangdong, China | Brand Name | CENTURY HC | |
| Model Number | VFD220E |
Product Description
1.High brightness green lattice vacuum fluorescent screen display(VFD),can display digital and english characters.Display content is 20 x2 line.
2.Internal chip electronic industry integration technology,use 1.6 mmFR4 PCB board which is the best in electronic industry.Stable performance and reliable.
3.Compatible with "ESC/POS" standard general instruction set.Do not need any driver,just Turn on and choose the work mode.
4.Power supply can be provided by USB port, and can also by DC 12 V.
5.Display's life can up to 300000 hours. It won't discolor or to be dark. We provide one year warranty.
6.Adjustable shell, comfortable visual angle.Pole height is adjustable
7.We can customize different content and currency according to customers' special needs. Application Area: Department store, supermarket, retail stores, restaurant and so on.
| Characters color: | Green fluorescent |
| Display type: | VFD screen |
| Characters No.: | 20*2 lines;5*7 dot |
| Brightness: | 3000cd/m |
| Voltage: | 12VDC±5% |
| MTBF: | 30000 hours |
| Max rotation angle: | 360deg |
| Interface: | RS232 (communication)+USB(power supply)/RS232 (communication)+DC/USB only (communication+power supply) |
| Baud Rate: | 2400/9600BPS |
| Display area: | 160mm(W) x 23.8mm(H) |
| Character size: | high 11mm x wide 7mm |
| Panel dimensions: | 80(H) x 225(W)x37(D) mm |
| Support dimensions: | Long support: 480mm (Contain base) |
| Short support: 225mm (Contain base) | |
| Base dimensions: 185(L) mmx95(w)mm x25(H) mm | |
| Pitching move angle: | 45°, Can provide comfortable, and adjust the visual Angle |
| Weight: | 1.3Kg (gross) |
| Operating Temp: | -20~70 A18 |
| Storage Temp; | -40~80 A19 |
| Operating Humidity: | 10~85% |
| Storage Humidity: | 10~90% |
