Transmitter and Receiver Uhf 400-470mhz 2014 New

FOB Price

Negotiable / Piece

2 Pieces(Min. Order)

Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	KOQI
Model Number	KQ-12	Type	Handheld
Dimensions	128.6mm60.6mm35.1mm	Frequency Range	400-470MHz
Storage Channel	16	Talk Range	3-10 km

Packaging Details

One piece of Transmitter and Receiver is packed in gift boxes, 20pcs to be packed in strong carton. the size of carton is 59*35*45cm.

Product Description

Specifications

Transmitter and Receiver
1.Frequency Range:400-470MHz
2.8 watts of high output power
3.16 channels
4.uhf radio

Transmitter and Receiver KQ-12

Quanzhou Koqi Electronic Co., Ltd is specialized in wide range of communication equipments, such as Transmitter and Receiver, Military Radio Equipment, Vehicle Radio, Handy Transceiver Radio, Repeater, PABX, PBX System, IP PBX and wireless network products. Some models are with CE,RoHS & FCC approval. Our main markets are South America, Europe, North America, Asia and the Middle East. Our products have won a good reputation in those markets. Also we can provide OEM and ODM service if necessary.

Specification

1. Frequency Range:400-470MHz.

2. Output power: 8W

3. Channel: 16

4. Busy Channel Lockout

5. VOX function

6. CTCSS/DCS

7. Time-out Timer

8. Low battery warning

9. Battery Save

10. Noise reduction circuit

11. 12.5K, 25K available

12. P.C programming

13. Talk Range:3- 10km

14. Dimension: 128.6*60.6*35.1mm(exclude antenna)

General
Frequency coverage	UHF 400-470MHz.
Channel Capacity	16
Channel Spacing	12.5/25KHz
Operated Voltage	7.4V
Battery Capacity	1500Mah Li-ion
Battery Life(5-5-90 duty cycle)	About 10 hours
Working Way	Simplex in same channel Simplex in different channel
Frequency Stability	+-2.5ppm
Operated Temperature	-20°C to +60°C
Antenna Impedance	50Ω
Dimensions	128.6mm×60.6mm×35.1mm
Transmitter
RF output power	5W
Modulation	F3E
Spurious Emission	<-36dB
FM Noise	≤-52dB(W) ≤-48dB(N)
Audio Distortion	≤5%
Transmitting Current	≤1.5A
Receiver
Sensitivity(12Db SINAD)	≤0.20μV
Sensitivity	60dB/55dB
Intermodulation	≥65dB
Adjacent Channel Selectivity	≥60dB
Spurious Response	≥60dB
FM Noise	52dB/48dB
Audio power Output	1000mW
Audio Distortion	≤5%

Delivery time: sample or small order within 3 days and bulk order within one week.

Payment: T/T, Western union, Paypal, Escrow

Warranty: 1 year

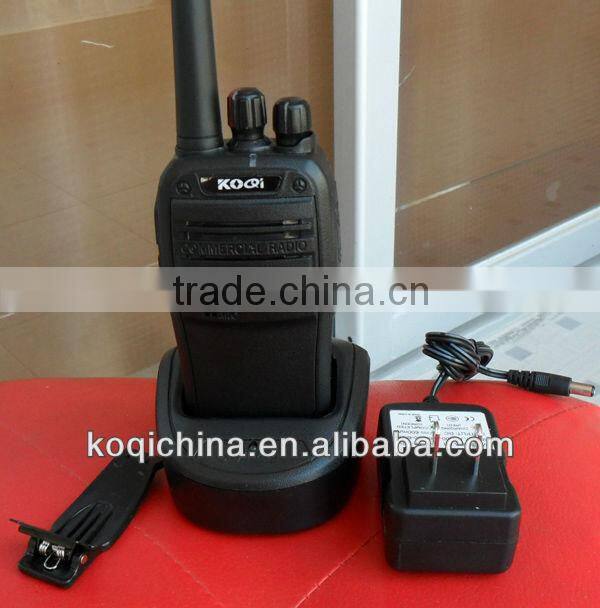

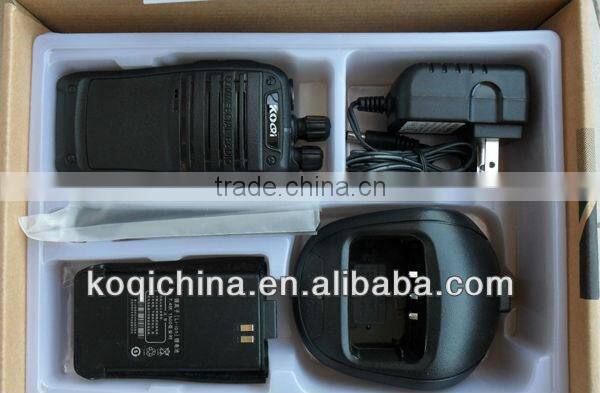

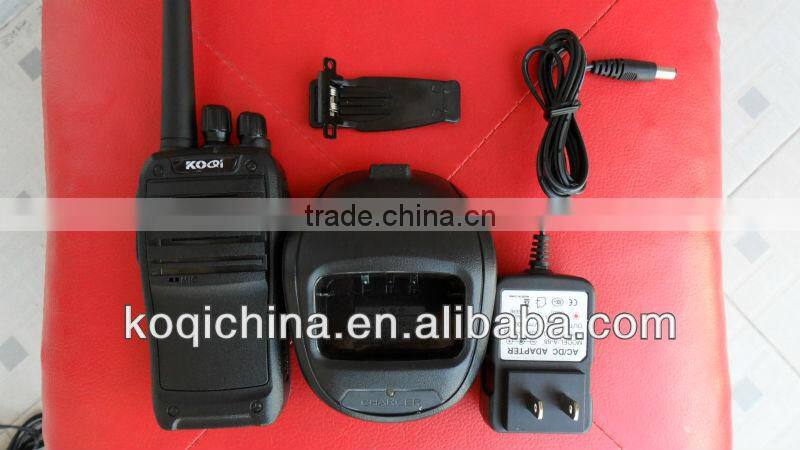

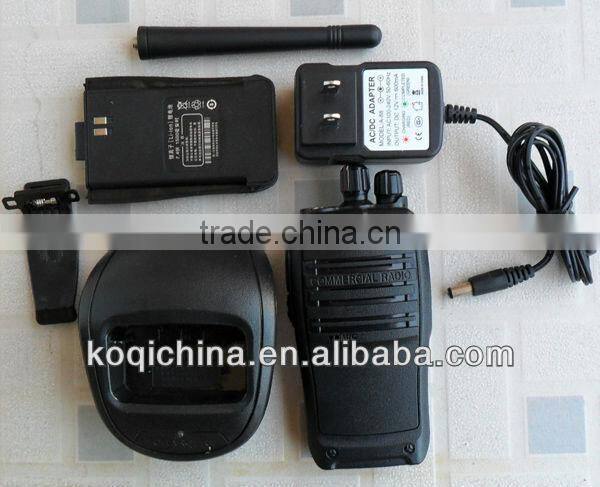

Picture of Ham Radio China FM KQ-12

If you are interested in Transmitter and Receiver KQ-12, please contact me anytime, I will reply to you in 24 hours. Thank you.
