Restaurant Waiter Call System With Table Pressing Button for Customer to Call Center

each unit of restaurant waiter call system in a standard box

restaurant waiter call system with table pressing button for customer to call center


Restaurant waiter call system is widely used in service area. It consists of table button for guest use and signal receiver for waiter or waitress use. When the guest needs any service, he or she just press the button near him or her, his or her desk number will showing on the RECEIVER with alert music or sound. So the waiters could offer service very timely.

1. With high strength high strength ABS shell , durable in use

2. Using digital code technology and the function is steady and reliable

3. Show 3-digit number and can show 3 groups of number at the same time.

4. Show different service type with special symbols(dots).

5. It can work with 400pcs 1-key or multi-key call buttons in max

6. It can save 30 calling info in turn, and apply in basic service places.

7. Improve service level restaurant server for wireless calling system

Technical parameters:

*Working voltage: DC12V~18V

*Working current: <20mA

*Working Frequency: 433.92mhz

*Dimension: 282*150*34mm

Picture of restaurant waiter call system Receiver K-4-C-Blue:

Specification of Watches Receiver K-300plus:

1. Can work with 500pcs 1-key and multi-key transmitter in max
2. Can show 3 group call number in one time
3. Show 4-digit number from 0001-9999 and first letter can be A-Z
4. Can indicate different service type via words or letter.(call;bill;drink; dessert ; help etc and A-Z)
5. Can record when call come in and Can count the call times of each number
6. Can store 50 calls and track the history calls up and down
7. Shows current time when stand-by
8. 3 reminder ways:sound promt and vibration or both
9. Battery is rechargeable
10.Dimension:50*41*16mm
11.Two display mode:live view and queue view
      --“live view” means, when No.1 No.2 No.3 call in turn, screen is show 0003 0002 0001. Newest call number show on the top of screen.
      --“queue view” means, when No.1 No.2 No.3 call in turn, screen is show 0001 0002 0003. Oldest call number show on the top of screen.

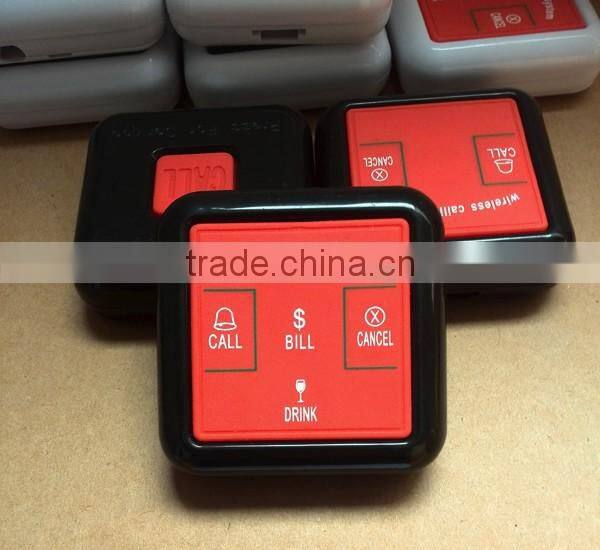

Specification of Button K-F4:

1. 100% Water-proof
2. Key button: Call, bill, cancel, drink
3. Material: PC
4. Work with our receiver to combined the wireless calling system
5. Can be installed on each table, when the customer need help only press the button, the calling no will be shown on the screen, so everyone can easy to know who is calling.
6. Color: black-black; black-orange

Technical Parameter:

Working voltage: DC12V
Working current: ≤35mA
Use Frequency: 433.92MHz
Transmitted Power: ≤10mW
Transmitted Distance: >300m in open area
Dimension : 60*60*20mm

Other call button we can offer:

Payment:  T/T, Western union, Paypal, Escrow

Warranty:  1 year

restaurant waiter call system can be used in restaurants, hotels, hospitals, tea house, coffee shops, health clubs, beauty salon, spa center, bars, swimming pool, beach, etc

What are the components of the wireless calling system?

1. Wireless receiver, installed on the count

2. Call button, installed on each table

3. Signal repeater (optional), enhance the signal

How does the system works?

1. After your customer gets seated, the waiter informs them that when they require service, all they need to do is press the button sitting on their table.

2. When the customer presses the call button on their table, their table number will appear on the reciever with ringing. Waiters then head over to the table to take the order of the customer promptly and quickly.

If you are interested in restaurant waiter call system, please contact me anytime, I will reply to you in 24 hours. Thank you.
