Insulating Oil Purifier, Black Oil Refinery, Oil Filtration Plant

FOB Price

US$ 4,900 - 7,000 / Set

1 Set(Min. Order)

Port Chongqing / Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Vacuum
Structure	Vacuum	Place of Origin	Chongqing, China
Brand Name	DEDING	Model Number	TYA
Power(W)	47kw	Weight	400KG
Dimension(LWH)	1100x800x1400mm	Certification	ISO9001
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

insulating oil purifier, black oil refinery, oil filtration plant

Series TYA Lube Oil Purifier/ Oil Refinery Equi

Used in machinery manufacturing, metallury, mining, petroleum, chemical, electric power, transportation, railways and other industry.

Effectively remove the oil, gas, water, impurities, volatile matter colloid, etc. Improve the oil quality, ensure the hydraulic system, power system, the normal operation of the lubrrication system.

Vacuum Series TYA Used Oil Purifier Machine Model

Index Item	Unit	TYA-20	TYA-30	TYA-50	TYA-100	TYA-150	TYA-200	TYA-300
Flow rate	L/min	20	30	50	100	150	200	300
Work Vacuum	Mpa	-0.06~-0.095
Working Pressure	ppm	≤0.4
Water Content	%	≤5
Gas Content		≤0.1
Mechanical Impurities	%	NO
kinematical viscosity	Mm2/3	GB443-84
Break the submersibility	MgKOH/g	≤60min(GB/T7605)
Cleaness	NAS	≤NAS6
Constant temperature control range	℃	≤80
Power Supply	V/Hz	380/50 or as your request
Appearance		Transparent(visual)
Noise	dB	≤65
Inlet (outlet) diameter	mm	20	30	32	40	42	50	60
Equipment weight	KG	380	400	750	950	1020	1500	1800
Dimensions	mm	1100800 1400	1100800 1400	16001100 1850	17001100 1850	18001100 1950	20001100 2000	23001250 2300
Remark	The above data for reference only. We can make OEM,ODM

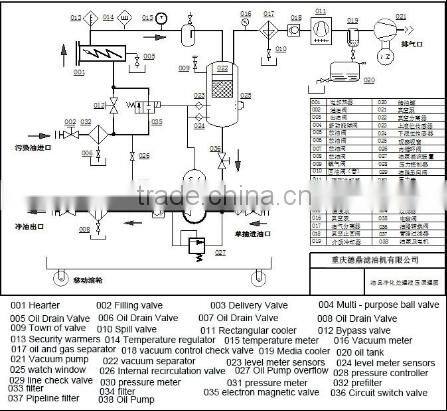

Vacuum Lubricating Oil Filter Machine Flow Graph

Before After

Chongqing Yinqiao De Ding Filter oil machine Co., Ltd, is a professional engaged in the modernization of fluid purification processing research and development, product manufacturing, technical services and equipment sales as one of the high-tech enterprises. Company as a Chongqing second filter factory, the 1998 reform, a wide range of fluid international advanced purification technology. In 2002, company attracted Germany and Britain returned, Company had development and production more than 100 products with independent intellectual property rights. At the same time, saving cost for customer, reducing energy consumption, play an important role in reducing pollution.
