Home > Products > New Products > 1G1R1B High definition P6 stage display screen
1G1R1B High definition P6 stage display screen
- 3000 Square Meter / Square Meters per Month
- Changsha or any port in China
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | MHG | |
| Model Number | PH6 | Usage | Indoor | |
| Tube Chip Color | Full Color | Display Function | Video | |
| Pixels | Other, 6mm | Screen Dimension | 192*96mm |
Product Description
Specifications
P6 stage display screen1. CE, RoHs certificate
2. LED display manufacturer
3. 1G1R1B
P6 stage display screen is a kind of SMD 3in1 indoor full color LED display. It is specially designed for the indoor High Definition shows. LED lamp adopts standard 3in1 SMD technology. Every light unit is composed by red, green and blue color so the colors of the display can reach 1.07 billion kinds.
² The indoor LED display can display colorful dynamic and static images in real time with perfect display effect. Thus, this LED display is the most significant display in all indoor full color screens.
² The LED display supports usual VGA and DVI tradational video signal, also specially supports HDMI video signal and so on. In addition, it can receive and display video programs, such as TV programs, VCD or DVD, living show etc.
² The products has high reliability, saturated and uniform color, hight brightness, low consumption, long service life and with wide angel sight. So the SMD full-color 3 in 1 indoor LED display is widely used in many indoor sites, such as show rooms, coffee house, hotel, stage and so on.
LED display Specification and Parameter
| Technical DataModel | PH6 |
| Pixel Pitch | 6mm |
| Physical Density(pixels/m²) | 27777 |
| LED Shape & Size | SMD 3 in 1 |
| LED Arrangement | 1R1G1B |
| Module Size(mm) | 192×96 |
| Module Resolution | 32*16 |
| Drive Mode | Dynamic 1/8 Duty Constant Current |
| Brightness | ≥1500cd/m² |
| Contrast(cd/m²) | ≥2000:1 |
| View Angle, 50% Brightness | 140°/140° |
| Minimum View Distance | 6m |
| Grey Scale | 10bits/1024levels |
| Color Capacity | 1.07billion |
| Maximum Power Consumption | 1380W/m² |
| Ave.Power Consumption | 460W/m² |
| Operation Power Source | AC90-260V 50-60HZ |
| Frame Frequency | 60-85HZ |
| Refresh Rate | 240-1000HZ |
| Brightness Adjustment | 0-100% 8 levels automatic |
| Gamma Correction | -5.0-5.0 |
| Correction Scale Level | 16bits |
| Color Temperature | 5000-9300K |
| Brightness Correction | Pixels, Module, Cabinet Correction |
| Input Source Support | Composite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI |
| Control Distance | UTP CAT5E:100m;Multi-mode Fiber:50m;Single-mode Fiber:10km |
| Operating Temperature | -40°C - 65°C |
| Operating Humidity | 10-90%RH |
| Operating Life Span | 100,000Hours |
| MTBF | 5000 Hours |
| Protection Ratings | IP31 |
| Out of Control Rate | 0.01% |

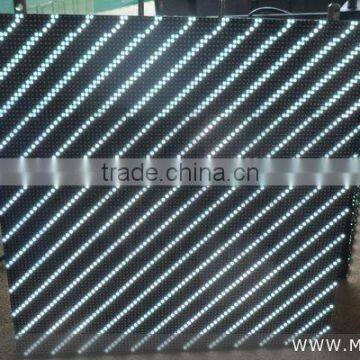

Items pictures
Display effect & Successful case
47.78 square metersLED screen Case for 2011 Science and Technology Achievements Transformation Fair
Shandong TV Studio Screen
Package
CE & Rohs certified
LED Display Workshop
About MHG
Established in 2001, we are a professional manufacturer of stage lights and LED display, we have 6 produce lines including LED Lights, Moving heads, cool lights, effect lights, color scrollors and special LED display plant, products are normally CE & Rohs certified.
And we are the member of China Entertainment Technology Association, of Seminar of China Television Broadcasting Institution, and of Society of China Illumination. Our ISO 9001 / 2008-certified factory has more than 200 workers and over 30 R&D staffs.
