SMD Full-color 3 In1 Indoor Screen(PH12)
US$ 1,000 - 2,000
/ Cubic Inch
1 Cubic Inch(Min. Order)
- Changsha
- T/T Credit Card PayPal
You May Like
-
China Dimmable P3.91 SMD Indoor Die-casting Aluminum LED Panel
-
China High Quality P3.91 SMD Indoor Die-casting Aluminum LED Screen for Rent
-
Super Resolution P3.91 SMD Indoor Die-casting Aluminum LED Panel Display
-
Advertising P3.91 SMD Indoor Die-cast Aluminum Led Display
-
Commercial P3.91Indoor Die-cast Aluminum Led Screen
-
P3.91 SMD Indoor Die-casting Aluminum Video/picture/message LED Display
Product Details
| Place of Origin | Hunan, China | Brand Name | MHG | |
| Model Number | PH12 | Usage | Indoor | |
| Tube Chip Color | Full Color | Display Function | Video | |
| Pixels | 11mm | Screen Dimension | Customized Size |
Product Description
Established in 2001, the member of China Entertainment Association,is a professional manufacturer of LED display,stage lighting. All of our products passed the ISO9001:2000 ,3C,CE,FCC,ROHS,LVD ...certifications .
MHG PH12 Indoor full color LED Display (SMD 3-in-1)
1.High resolution,low power consumption, large viewing angle and long lifespan
2.This modle Widely used in advertising, sports, industrial enterprises, transportation, stations, terminals, airports, construction, education system and other public places until now.

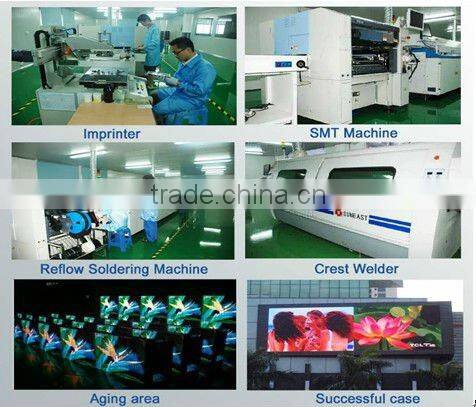

MHG LED DISPLAY SMT WORKSHOP:
Specifications:
| LED DISPLAY TYPE | PH12 SMD FULL 3 in 1COLOR SERIES (INDOOR) | ||
| Pixel pitch | 12mm | Frame frequency | 60-85HZ |
| Physical density | 6944 pixels/sq | Refresh rate | 240-1000HZ |
| LED configuration | SMD 3 in 1 | Brightnessd adjustment | 0-100% 8 levels automatic |
| Physical density | 1R1G1B | Gamma correction | -5.0-5.0 |
| Module size | 1192*192mm | Correction scale level | 16bits |
| Module resolution | 16*16 | Color temperature | 5000-9300k |
| Drive mode | Dynamic 1/8 duty ty constant current | Brightness correction | Pixel,module, cabinet correction |
| Brightness | ≥1100cd/m2 | Contrast | ≥2000:1 |
| Control distance | UTP CAT5E:100m,muti-mode fiber:500m single-mode fiber:10km | Input source support | composite,S-video,component, VGA,DVI,HDMI,SDI,HD SDI |
| View angle | 140./140. | Operating temperature | -40-60.C |
| Minimum view distance | 12m | Operating humidity | 10-90% RH |
| Grey scale | 10bits/1024 levels | Operating life span | 100,000 Hours |
| Color capacity | 1.07 billion | MTBF | 5000 hours |
| Maximum power consumption | 600w/ M2 | Protection ratings | IP31 |
| Ave power consumption | 200w/M2 | Out of control rate | 0.01% |
| Operationg power source | AC90-260V 50-60 HZ | ||
MHG SUCCESSFUL CASES:
