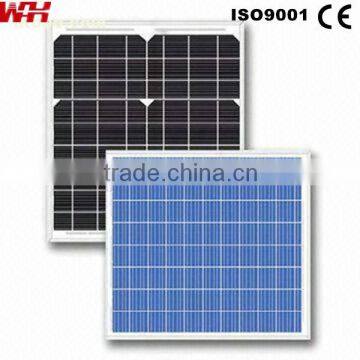

Custom Solar Wall Panels for Mobile Yurt

FOB Price

US$ 0.36 - 1.024 / Watt

2000 Watts(Min. Order)

Port Dalian Ningbo Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jilin, China	Brand Name	Wanhe
Model Number	2015-23	Material	Polycrystalline Silicon
Size	100051035	Number of Cells	36
Max. Power	80W

Product Description

Jilin Wanhe Lighting Co.,Ltd is located in Changchun City,Jilin Province,Northeast of China.Wanhe is an international Solar Panels supplier manufacturer in China more than 10 years. Wanhe has the modern management method and a professional efficient team. All workers pass the skills access before work.Wanhe uses the newest technology and equipment, 90% of the production facilities are imported from Germany, Italy and US.All products are approved by ISO9001/14001, TUV, UL, CE& CSA. Wanhe has powerful Research Ability, 15~20 new kinds of products are launched each year.Wanhe has annual 200MW solar panel and solar cell production capacity.80% of our products are export to more than 60 countries in the world.

Details about Solar Modules
Module Type	80W-P
Number of Cells	36pcs
Dimensions	100051035mm
Peak Power (Pmax)	80W
Module Efficiency	16.07%
Cell Efficiency	19%
Power Tolerance	±3%
Open Circuit Voltage(Voc)	21.24V
Short Circuit Current(Isc)	4.89A
Working Current	4.44A
Working Voltage	18V
Max System Voltage	DC 600V
Operating Temperature	-40°C~85 °C
Nominal Operating Cell Temp	47±2 °C
Temp. coefficient Isc(TK Isc)	0.06%/ °C
Temp. coefficient Voc(TK Voc)	-0.34%/ °C
Temp. coefficient Power(TK Pmax)	-0.42%/ °C
Series Fuse Rating	5A
