professional stage euipment lighting LED Moving Head Stage Light

Specifications

M-2156  DMX linear focusing ZOOM big moving head light is integrating digital projection capabilities, creating a real convergence between lighting and video projection. They have CMY color mixing as the high-end spot lights.

The digital moving light can be used wherever there is a need for powerful lighting which must be capable of rapid and extreme changes of mood and effects.

Specification and Parameter

•      Light Source: PHILIPS MSD 1200SA,

•      Working Hour: 750 hours, Lamp holder G22

•      Input Voltage: Electric Ballast Version:00V/120V/200V/220V/230V/240V AC, 50/60HZ

                               Magnetic Ballast Version: 220CAV, 50/60HZ, (200/230/240V AC, 50/60HZ available)

•      Power Consumption: Electric Ballast Version: 1500W@220V

                                               Magnetic Ballast Version: 1600W@220V

•      Color Wheel: CMY color mixing system with macro instruction function

1 color wheels: with 6 replaceable colors plus white and half color, bi-direction rainbow effects available.

 Step / linear color diffusion selectable, Auto function, Sound Active function

•      Color wheel Outside Dimension: 41.8mm

•      CTC: 0~100% linear cooling system

•      Gobo: 2 rotating Gobo, with 6 replaceable Gobos plus white, glass Gobo and metal Gobo installable, bi-direction rotating adjustable, indexable, shake function/bi-direction flow effects adjustable, auto function, sound active function

Gobo wheel outside dimension: 37.3mm

Gobo Effective Dimension: 31.5mm

•      Prism/Effect Disk: 1 effect disk, 4 replaceable prism plus white, indexable, auto function, sound active function

       Prism outside dimension: 46.8mm

•      Soft Light / Frost: soft light 0~100% linear adjustment

•      Zoom: DMX linear focusing

•      Beam Angle: 14°~42°linear adjustment

•      Dimmer: 1°~100°linear adjustment

•      Strobe: dual-plate strobe, variable strobing 0.3~15 flash per sec, inside strobe macro-function

•      XY Movement Range: Pan 560°, Tilt 280°, Automatic Pan/Tilt correction, blackout movable

•      Control Channels: 24CH/32CH, channel order editable

•      Control Signal: DMX512, 3-Pin or 5-Pin XLR IN/OUT

•      Self-test Mode: self-test program editable

•      Pan, Tilt, CMY, and Dimmer speed adjustable

•      LCD Display, displaying brightness adjustable (10-100%), working hour and bulb control mode selectable

•      Ballast with auto energy saving, and transducer malfunction diagnosis system

•      Housing: high intensity and heat resistant complex plastic

•      Protection Grade: IP20

•      Dimension: 640mm×550mm×880mm

•      Net Weight: Electric Ballast Version: 40kg

                             Magnetic Ballast Version: 51.5kg

•      Lamp work time: 750hrs

•     Color temperature: 6000K adjustable

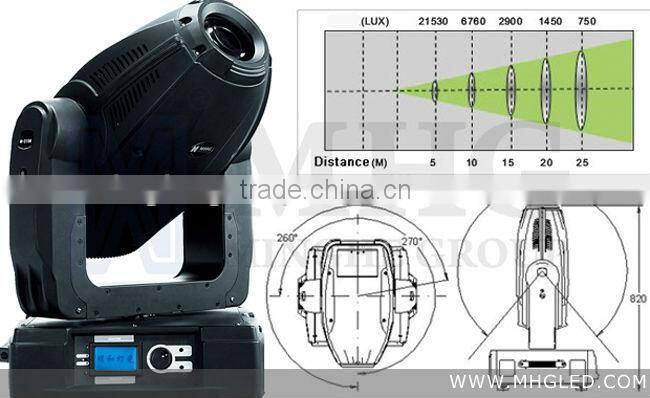

 Item Pictures:

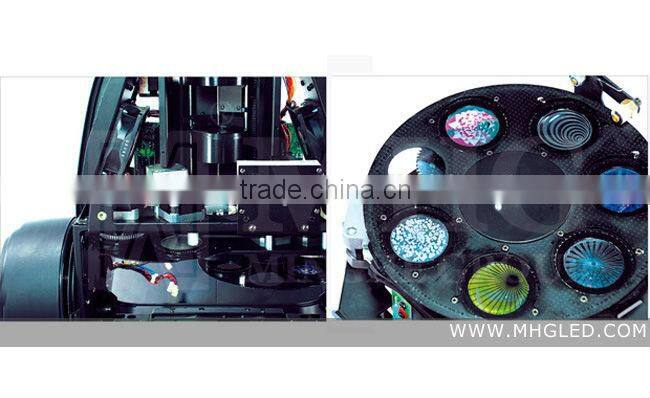

Detail pictures:

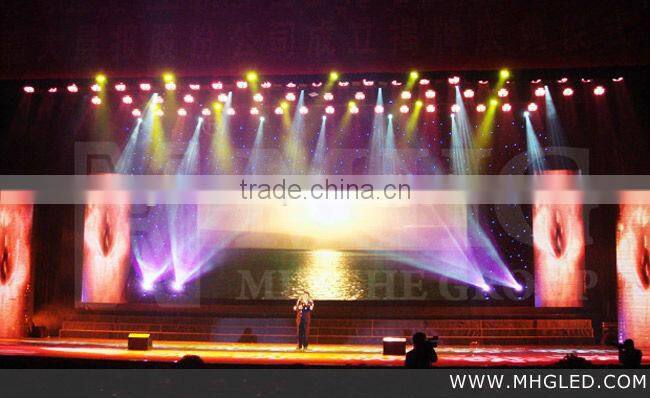

 Lighting effect & Successful case

 M-2156 Digital Moving Head Light Lighting case-Shanghai-World-Expo-grand-Pavilion-lighting-project

Dachen Newspaper unveiling ceremony stage lighting project

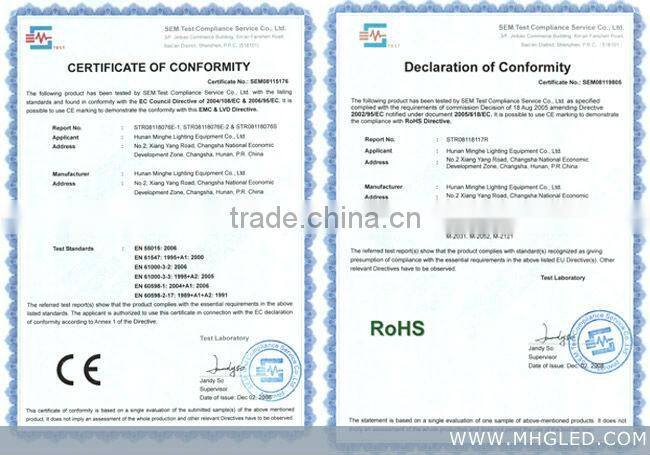

CE & RoHS certified:

Moving Head Light Workshop

About MHG

Established in 2001, we are a professional manufacturer of stage lights and LED display, we have 6 product lines including LED Lights, Moving heads, cool lights, effect lights, color scrollors and special LED display plant, products are normally CE & Rohs certified.

And we are the member of China Entertainment Technology Association, of Seminar of China Television Broadcasting Institution, and of Society of China Illumination. Our ISO 9001 / 2008-certified factory has more than 200 workers and over 30 R&D staffs.
